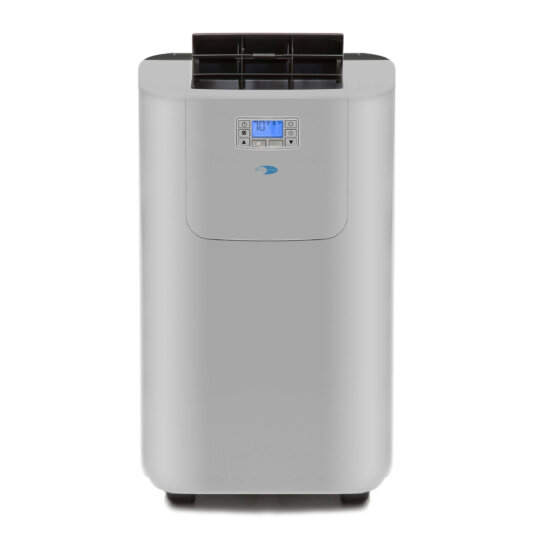

Whynter ARC-122DHP 12,000 BTU (7,000 BTU SACC) Elite Dual Hose Portable Air Conditioner, Heater, Dehumidifier, and Fan with Activated Carbon Filter plus Autopump and Storage bag, up to 400 sq ft in Grey

Product Description

Additional information

Features and Specifications

● Silver color
● 12000 BTU Cooling (ASHRAE-128 Standard) / 7000 BTU (DOE Standard)
10000 BTU Heating (ASHRAE-128 Standard)
● Refrigerant: R32
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments in cooling and dehumidifying modes
● Upper and lower drain ports for continuous operation (cooling and dehumidifying modes)
● AutoPump for continuous operation
● AutoPump function can be utilized to pump out (and up to 16 ft of vertical lift) moisture through the included 7.5’ drain tube for continuous condensate removal
● Four operational modes: Cool, Heat, Fan, Air Conditioner
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 82 Pts / day
● Upper and lower drain ports for continuous operation
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 speed fan with 2-way directional air louvers
● Equipped with Carbon air filter and washable pre-filter
● Cooling thermostatic control (61°F – 89°F)
● Heating thermostatic control in ambient conditions above 45° F (61°F – 77°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <47 low/ <52 high
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Large Exhaust Hose: 5.9″ diameter
● Large Hose Connector: 5.9″ diameter with 5.0″ diameter reducer
● Small Intake Hose: 5.0″ diameter
● Small Hose Connector: 5.0″ diameter
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Air Flow (at high speed): 330m3/h / 194CFM
● Maximum cooling power consumption: 1200W  / 10.5A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 17″ W x 16″ D x 29.5″ H
● Package dimensions: 20″ W x 18″ D x 35″ H
● Net weight: 70 lbs
● Gross weight: 82 lbs
● UL listed
● UPC 850956003897

*This unit comes with one year warranty and three year warranty on the compressor.

Support

USER MANUAL >>

USER MANUAL – Spanish>>

USER GUIDE >>

Troubleshooting >>

FAQs

WireCutter

Video

Accessories

Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 4.3” diameter intake and 5.0″ diameter exhaust hose set or a 5.0” diameter intake and 5.9″ diameter exhaust hose set and/or connectors listed below. Please make sure to measure your existing hoses before ordering additional accessories.

NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.

ARC-EH-1113-SET
(Whynter Intake 4.3” diameter / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores

ARC-EH-TYPE-L-S-SET
(Whynter Intake 5.0” diameter/ Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com

Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 4.3” diameter intake and 5.0″ diameter exhaust hose connector set or a 5.0” diameter intake and 5.9″ diameter exhaust hose connector set listed below. Please make sure to measure your existing hoses before ordering additional accessories.

ARC-HCSET-110-131V1
(Whynter hose extender set for 4.3” diameter intake and 5.0″ diameter exhaust hose)
Available at:
Ambient Stores

ARC-HCSET-110-131V2
(Whynter hose extender set for 5.0” diameter intake and 5.9″ diameter exhaust hose)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com

Activated Carbon Filter: ARC-CF-12SD
Whynter Activated Carbon Filter
Available at:
Ambient Stores

Storage Bag: ARC-STRGBG-B
Whynter portable air conditioner storage bag
Available at:
Ambient Stores

Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com

Optional Upper Drain Hose: ARC-TYPN-UDPH
Whynter optional upper drain hose for continuous gravity drainage setup
Available at:
Ambient Stores

Complete Accessories Set: ARC-ACC-DUSETG2-V1
Complete Ventilation Set for ARC-122DHP
Available at:
Ambient Stores
