ARC-131GD Energy-Efficient Portable Air Conditioner

Description
Additional information
Feature and Specifications
Video
Support
Accessories
Retailers

Product Description

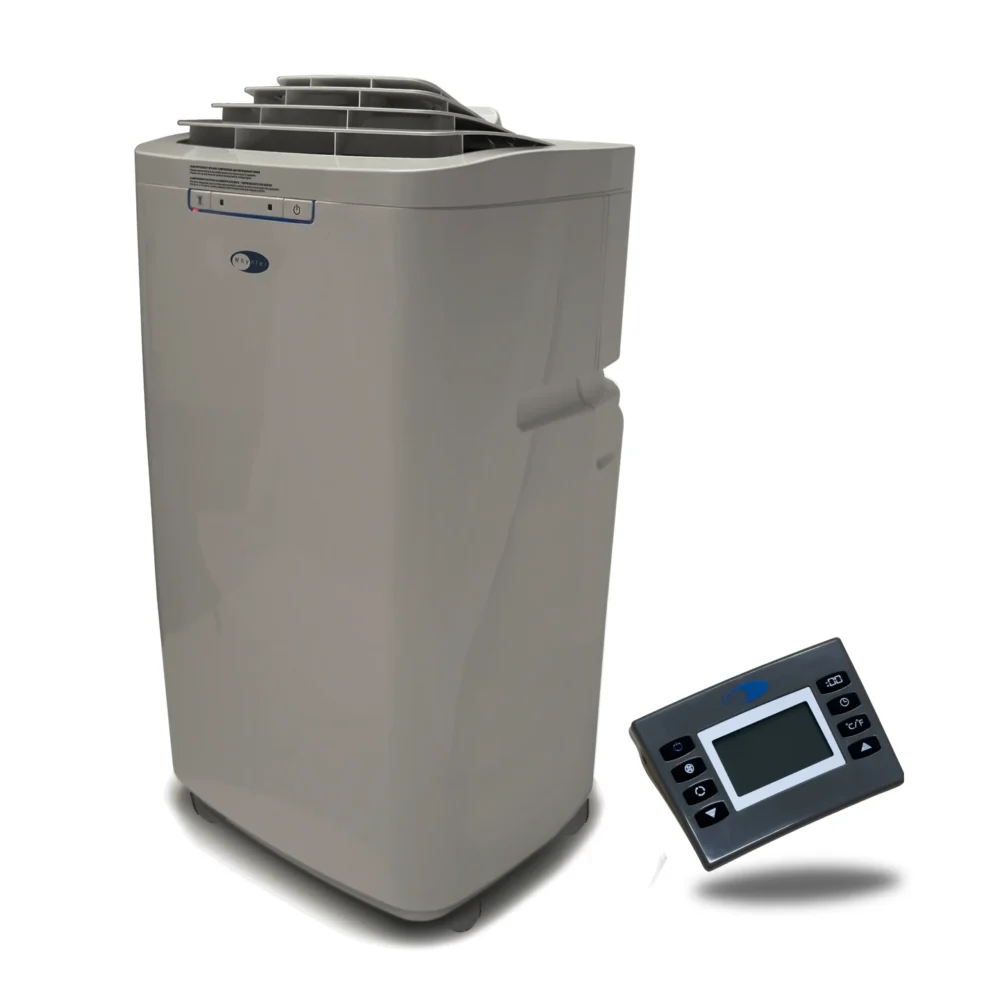

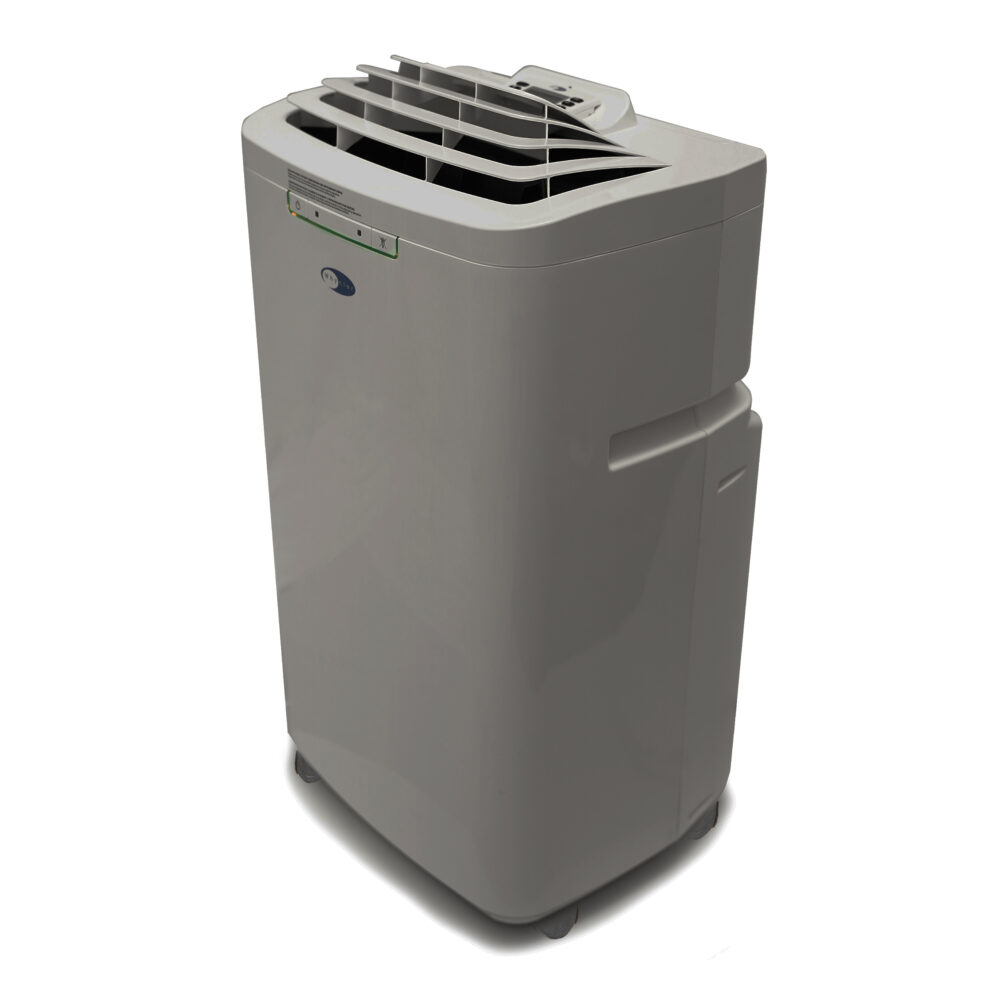

Optimize your cooling needs with the Whynter ARC-131GD 13,000 BTU (6,345 BTU SACC) Dual Hose Portable Air Conditioner. Designed to cool, dehumidify, and circulate air efficiently, it covers up to 420 sq. ft. with its Activated Carbon filter ensuring cleaner air quality. The convenient storage bag and sleek gray design offer a modern touch while maximizing functionality. The premium design fits with any interior design style, typically seen in computer/server rooms, bedrooms, classrooms, and garages/workshops. Trust Whynter for reliable, high-efficiency portable climate control solutions that blend seamlessly into your space.

FAQ Support

Additional information

ASHRAE BTU	13,000 BTU
SACC BTU	6,345.87 BTU
Color	Gray
Coverage Sq. Ft.	420 sq. ft.
Dehumidifying Capacity	91 pints/ day
Exhaust Hose Length	Max. 60"
Window Kit Length	6.5" W x 20" (min)/ 46" (max) L
Fan Speed	4 speed
Filter Type	Carbon air filter and washable pre-filter
Heat Mode	No
Hose System	Dual Hose
Louver Type	Fixed
Maximum Power Consumption	1050 W / 9.5 A
Noise level (dBA)	<52.5 low/ <56 high
Pump Feature	No
Refrigerant	R-410A
Replacement Filter	Carbon: ARC-CF-12S
Replacement Hose	"small hose: ARC-EH-TYPE-S large hose: ARC-EH-TYPE-L"
Replacement Window Kit	ARC-WK-DUALN
Storage Bag	Yes
Temperature Range	61°F – 89°F
Upper Gravity Drain Port	Yes
Unit Dimensions	17.3" W x 15.4" D x 30.5" H

Feature and Specifications

● Gray color
● 13,000 BTU Cooling
● ECO- FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Self evaporating design exhausts most or all condensate automatically in most environments

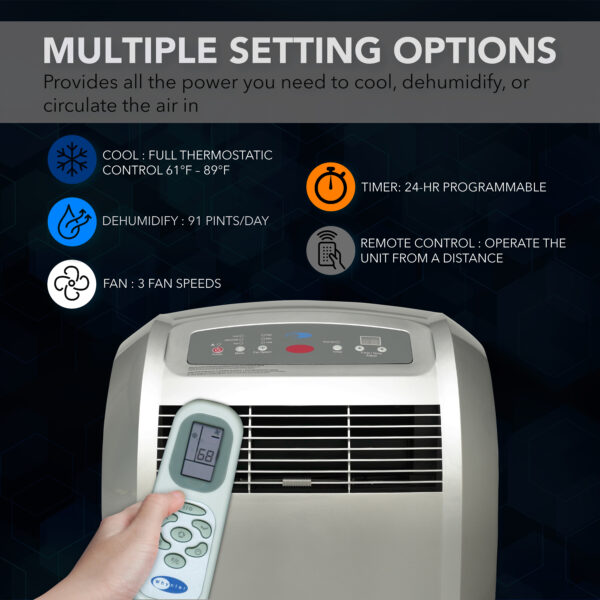

● Four operational modes: Air conditioner, Fan, Dehumidifier, Automatic mode
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 91 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 4 fan speeds
● Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <52.5 low/ <56 high
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 59″)
● Upgraded Plastic window kit included
● Large Exhaust Hose: 5.9″ diameter
● Large Hose Connector: 5.9″ diameter with 5.0″ diameter reducer
● Small Intake Hose: 5.0″ diameter
● Small Hose Connector: 5.0″ diameter
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Air Flow (at high speed): 320 m3/h / 188 CFM
● Maximum power consumption: 1050 W / 9.5 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 17.3” W x 15.4“ D x 30.5” H
● Package dimensions: 20″ D x 19″ W x 35″ H
● Net weight: 68 lbs
● Gross weight: 75 lbs
● UL listed
● UPC 850956003194

*This unit comes with one year warranty and three year warranty on the compressor.

Video

Support

USER MANUAL >>

ENERGY GUIDE>>

Troubleshooting >>

FAQs

Accessories

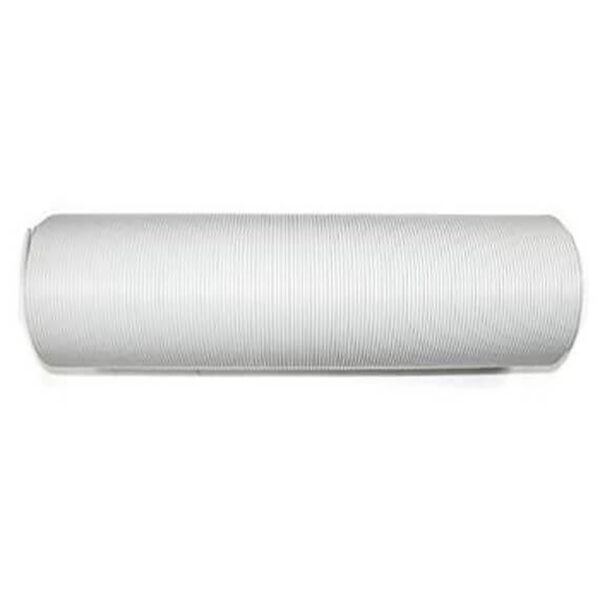

Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 4.3” diameter intake and 5.0″ diameter exhaust hose set or a 5.0” diameter intake and 5.9″ diameter exhaust hose set and/or connectors listed below. Please make sure to measure your existing hoses before ordering additional accessories. NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.

ARC-EH-1113-SET (Whynter Intake 4.3” diameter / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com

ARC-EH-TYPE-L-S-SET (Whynter Intake 5.0” diameter/ Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com

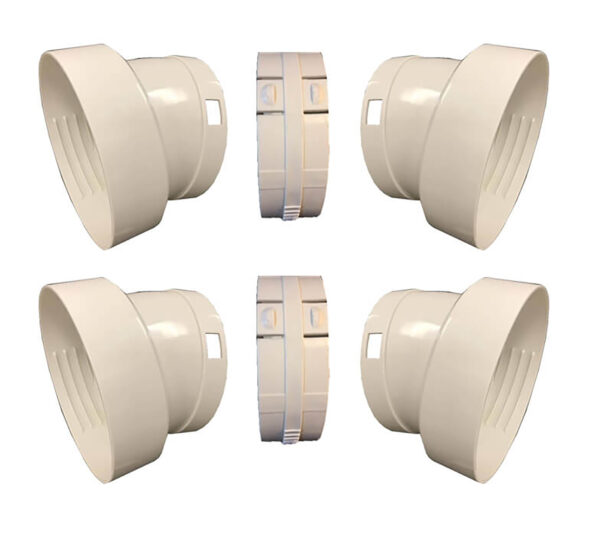

Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 4.3” diameter intake and 5.0″ diameter exhaust hose connector set or a 5.0” diameter intake and 5.9″ diameter exhaust hose connector set listed below. Please make sure to measure your existing hoses before ordering additional accessories.

ARC-HCSET-110-131V1 (Whynter hose extender set for 4.3” diameter intake and 5.0″ diameter exhaust hose)
Available at:
Ambient Stores

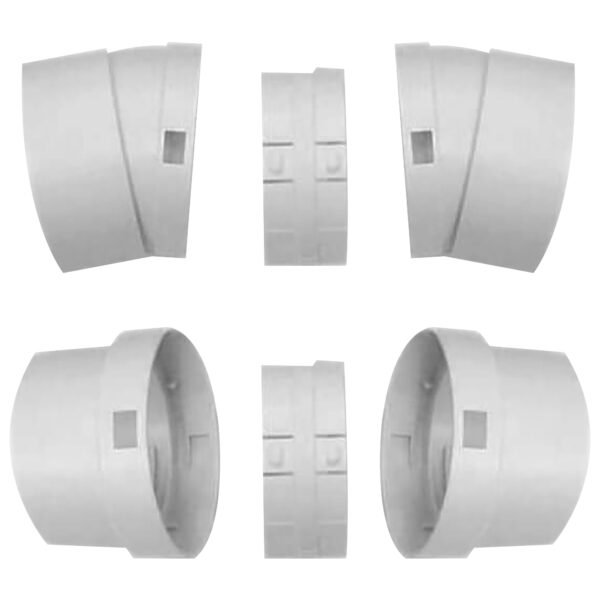

ARC-HCSET-110-131V2 (Whynter hose extender set for 5.0” diameter intake and 5.9″ diameter exhaust hose)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-DUALN Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com

Activated Carbon Filter: ARC-CF-12S Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com

Storage Bag: ARC-STRGBG-B Whynter portable air conditioner storage bag
Available at:
Ambient Stores

Optional Lower Drain Bucket: ARC-DB Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com

Optional Upper Drain Hose: ARC-TYPN-UDPH Whynter optional upper drain hose for continuous gravity drainage setup
Available at: Ambient Stores

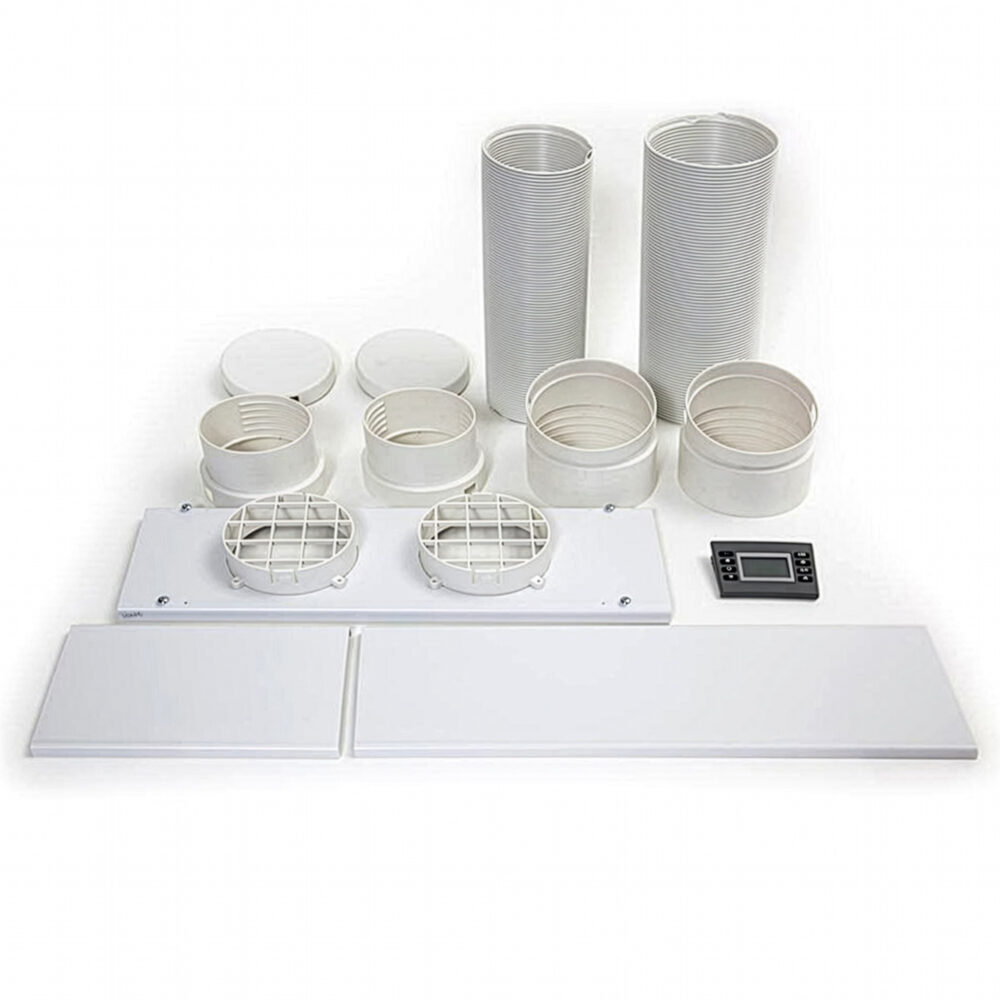

Complete Accessories Set: ARC-ACC-DUSETG2-V2 Complete Ventilation Set for ARC-131GD
Available at: Ambient Stores

Retailers

Where to Buy

Cooling Relief for Any Area

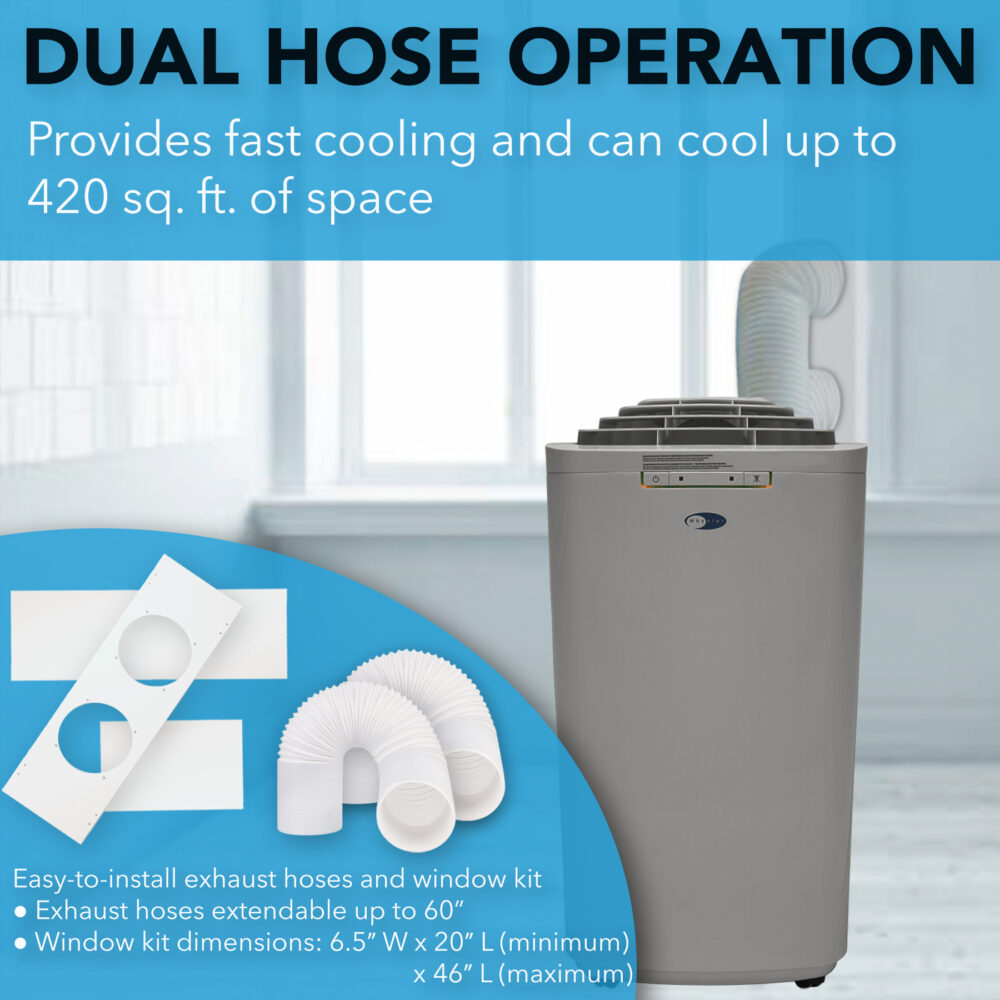

The leading attribute of this energy-efficient air conditioner model is its compact size and dual hose system which facilitates greater space utilization and more efficient cooling. With 13,000 BTU of cooling power, the Whynter ARC-131GD is an ideal solution for the warm spots in your home or office. Portable and easy to set up, this is one of the few portable air conditioners that offers cooling relief for any area where excess humidity and heat cannot be remedied by traditional air conditioning.

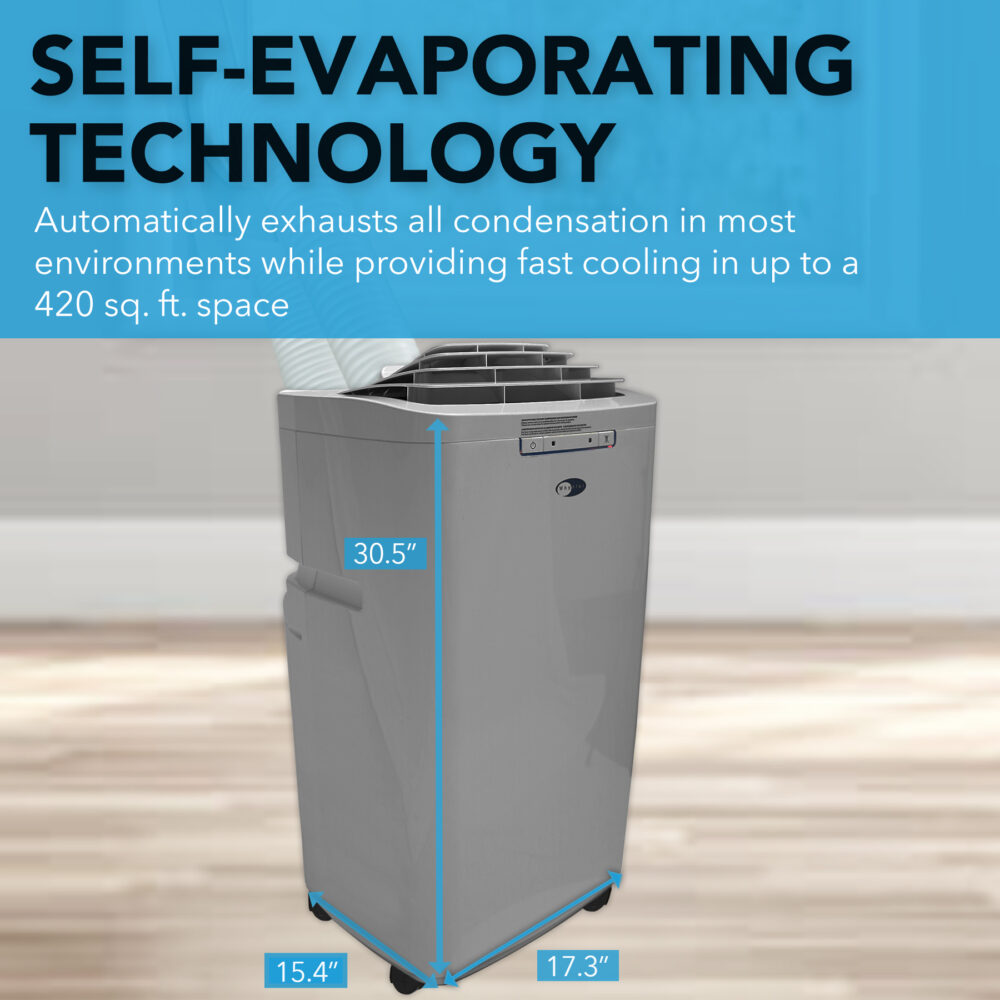

This energy-efficient air conditioner features advanced self-evaporating technology, which uses and recycles moisture collected during the cooling process to produce cool air. Your 13,000 BTU portable air conditioner comes equipped with all of the great features of the Whynter air conditioner line. This includes the conscious eco-friendly design, which keeps materials free of lead and other harmful elements, and also maintains operational environmental standards. You reduce energy consumption and increase energy efficiency with this model, which can’t be beaten when combined with the speed of the dual hose operation.

Personalize Your Experience

Our energy-efficient air conditioner provides hassle-free operation so you can personalize your experience. For example, you can easily move this unit from room to room with no permanent installation required. We include a window kit and casters with your 13,000 BTU portable air conditioner for easy portability. The auto restart function provides protection, and the programmed 24-hour timer offers a lot of flexibility for your convenience.

When you are not using your unit, keep the energy-efficient air conditioner safe with the included protective cover. Its pocket will store your exhaust hoses, window kit, remote control, and user manual.

Whynter ARC-131GD 13,000 BTU (6,345 BTU SACC) Dual Hose Cooling Portable Air Conditioner, Dehumidifier, and Fan with Activated Carbon Filter in Gray plus Storage bag for, up to 420 sq ft in Grey

Product Description

Additional information

Feature and Specifications

Video

Support

Accessories

Retailers

Cooling Relief for Any Area

Personalize Your Experience

Go Green with Whynter’s ACs

Whynter ARC-131GD 13,000 BTU (6,345 BTU SACC) Dual Hose Cooling Portable Air Conditioner, Dehumidifier, and Fan with Activated Carbon Filter in Gray plus Storage bag for, up to 420 sq ft in Grey

Product Description

Additional information

Feature and Specifications

Video

Support

Accessories

Retailers

Cooling Relief for Any Area

Personalize Your Experience

Go Green with Whynter’s ACs

Related Products

Whynter ARC-14S 14,000 (9,500 BTU SACC) BTU Dual Hose Cooling Portable Air Conditioner, Dehumidifier, and Fan with Activated Carbon Filter plus Storage bag, up to 500 sq ft in Platinum/Black

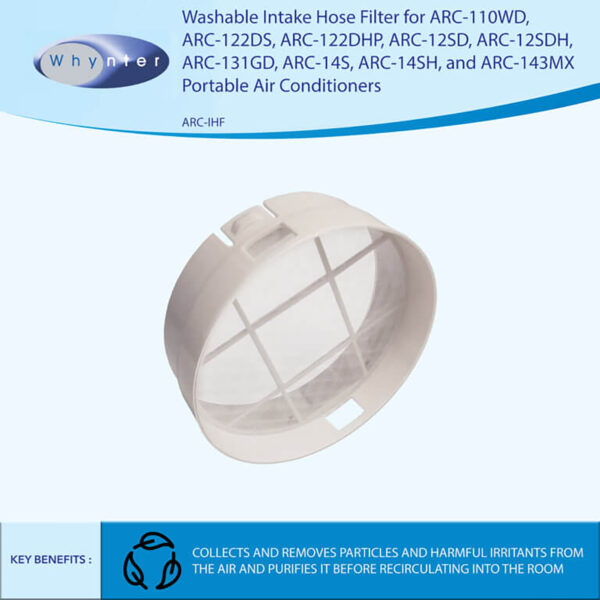

Whynter ARC-IHF Intake Hose Pre-filter

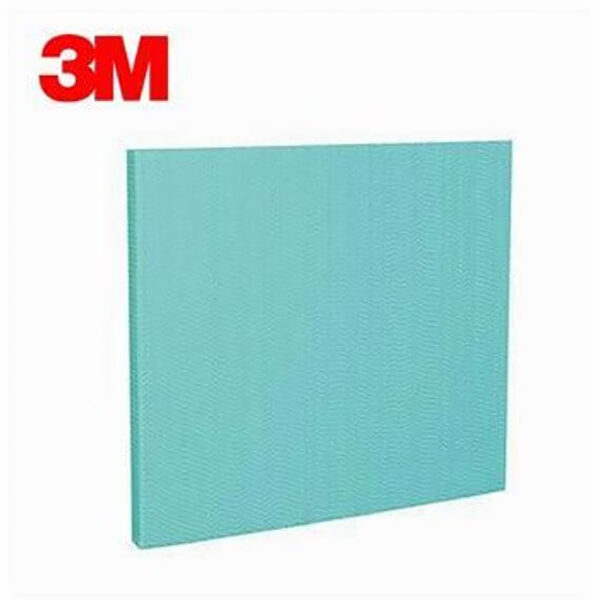

Whynter ARC-FIL-3M 3M High Air Flow Air Filter
