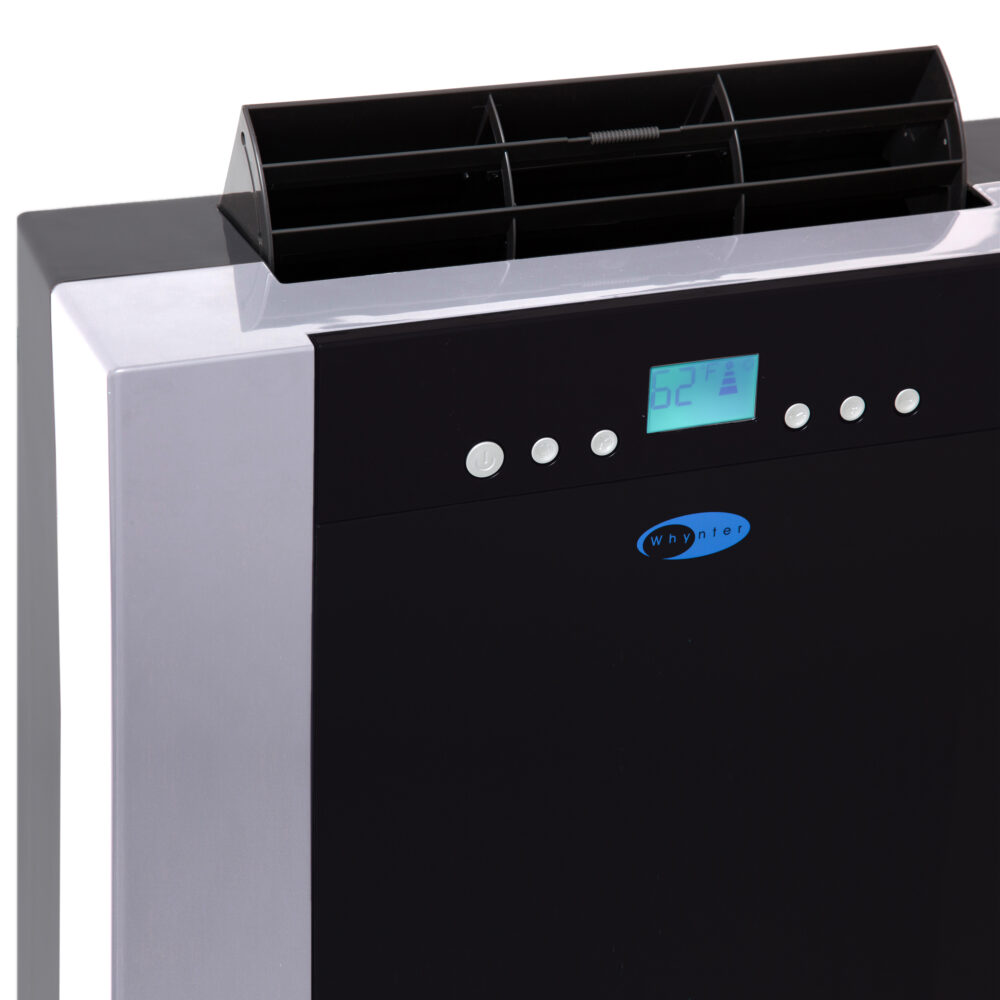

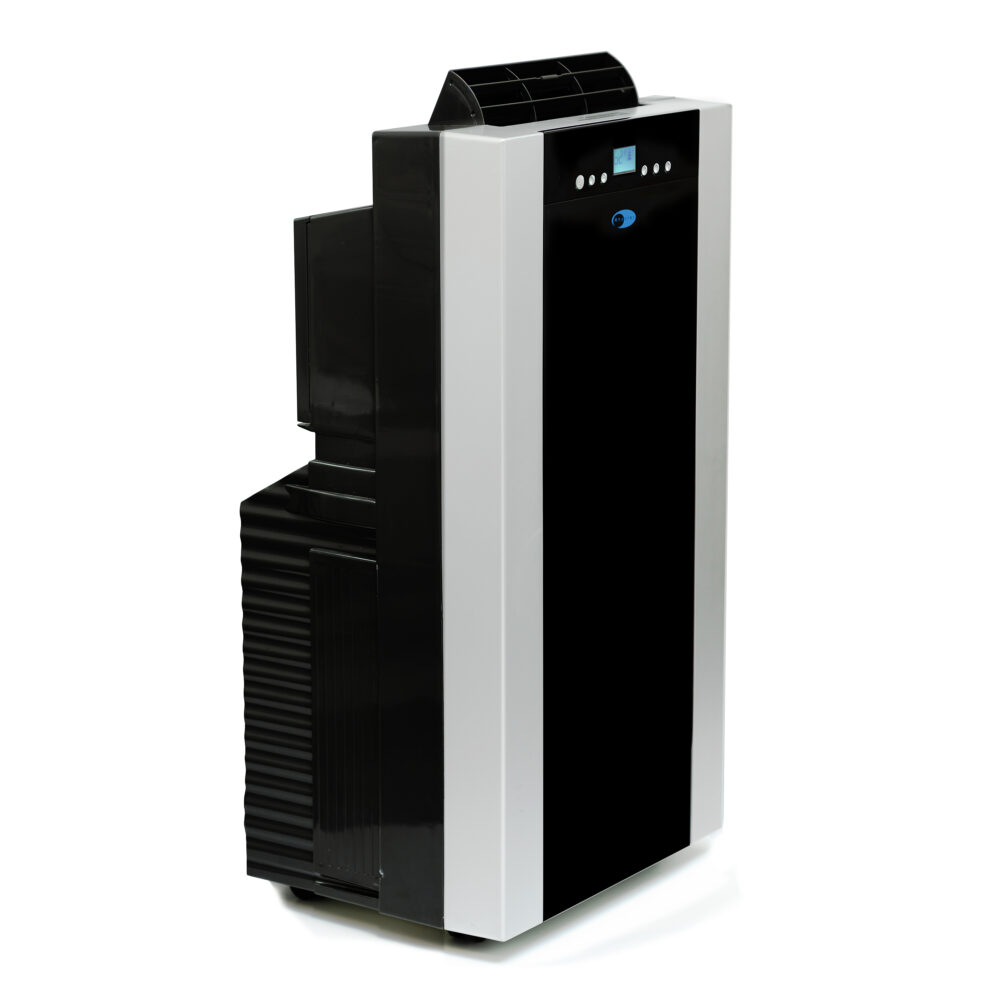

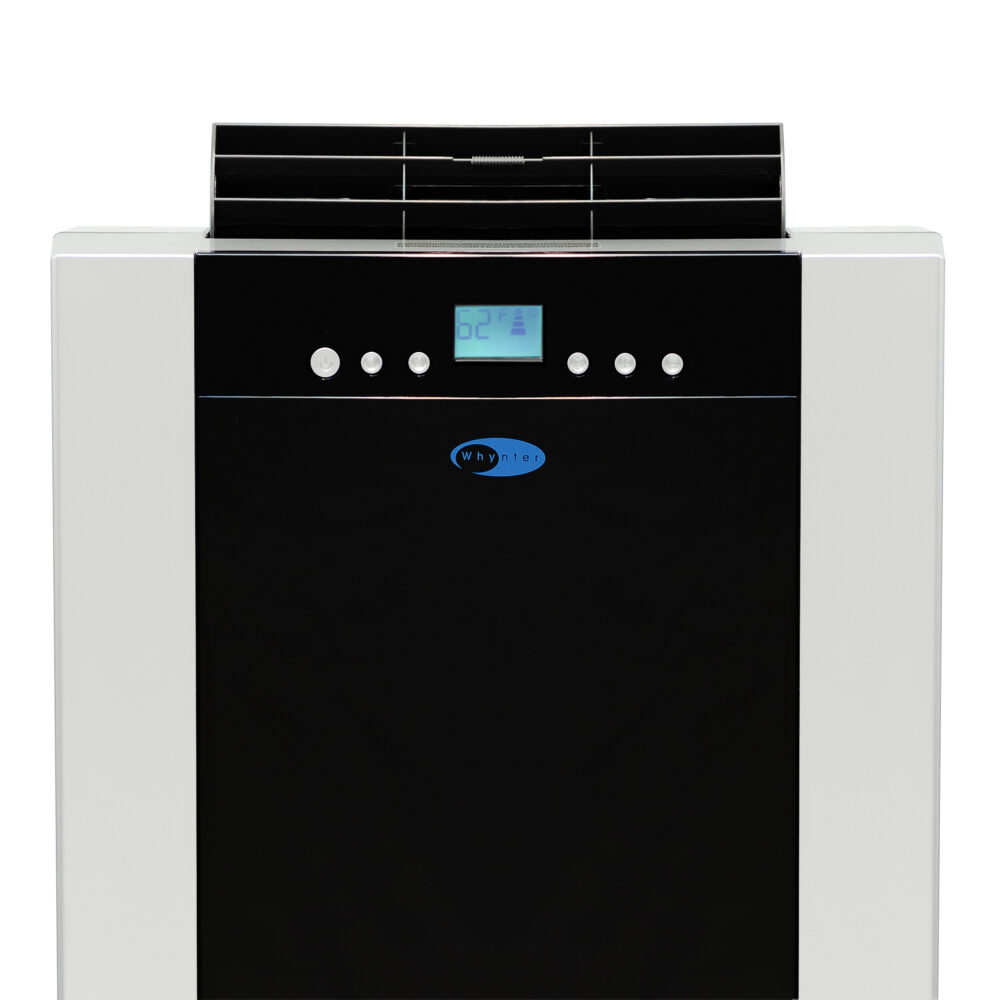

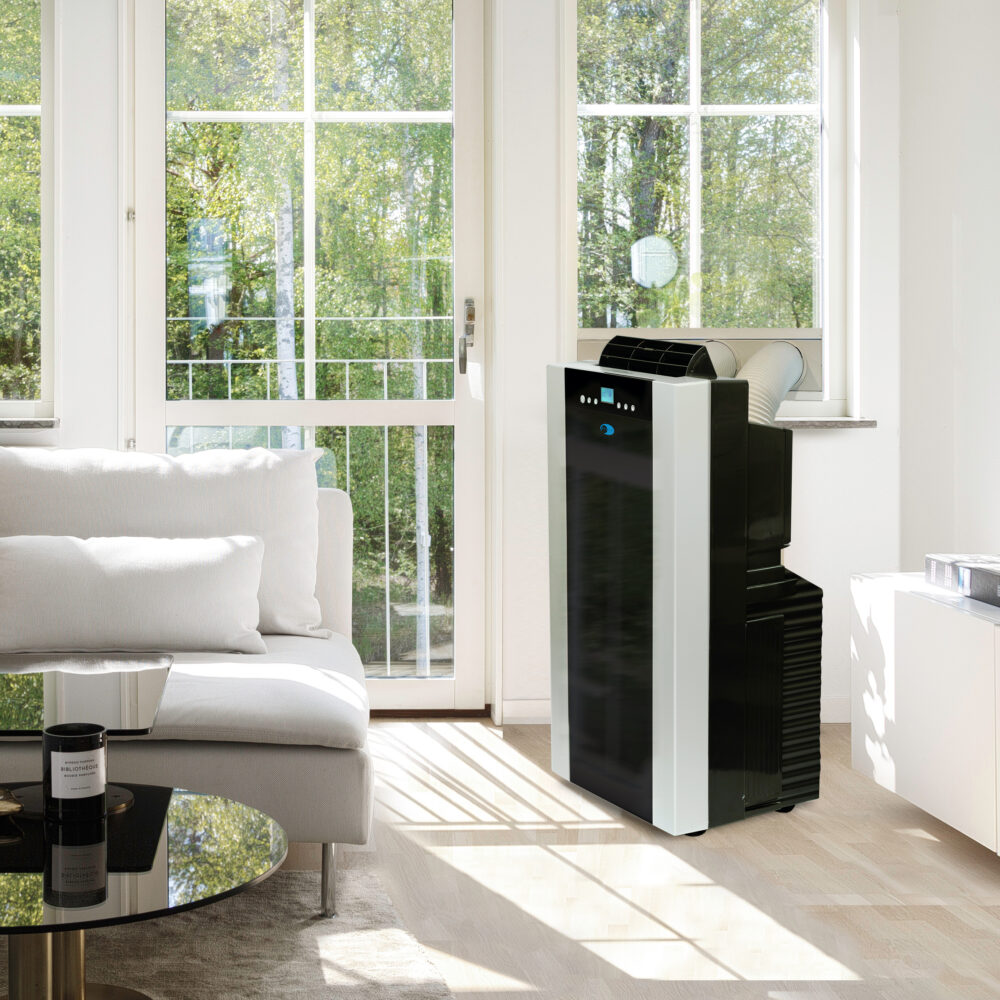

Whynter ARC-14SH 14,000 BTU (9,200 BTU SACC) Dual Hose Cooling Portable Air Conditioner, Heater, Dehumidifier, and Fan with Activated Carbon Filter plus Storage bag, up to 500 sq ft in Platinum/Black

Product Description

Additional information

Features and Specifications

● Two tone design exterior- Platinum and Black
● 14,000 BTU Cooling (ASHRAE-128 Standard)/ 9,200 BTU Cooling (DOE 2017 Standard)
● 13,000 BTU Heating (ASHRAE-128 Standard)

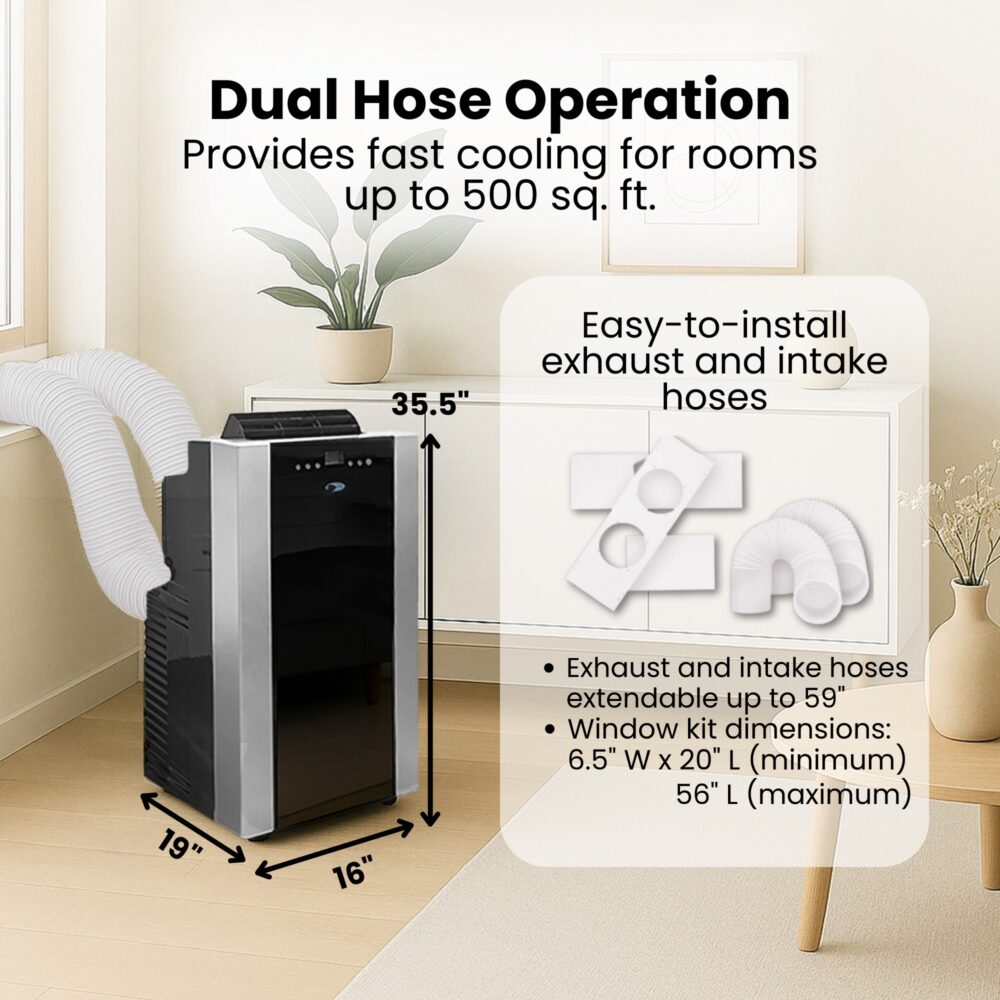

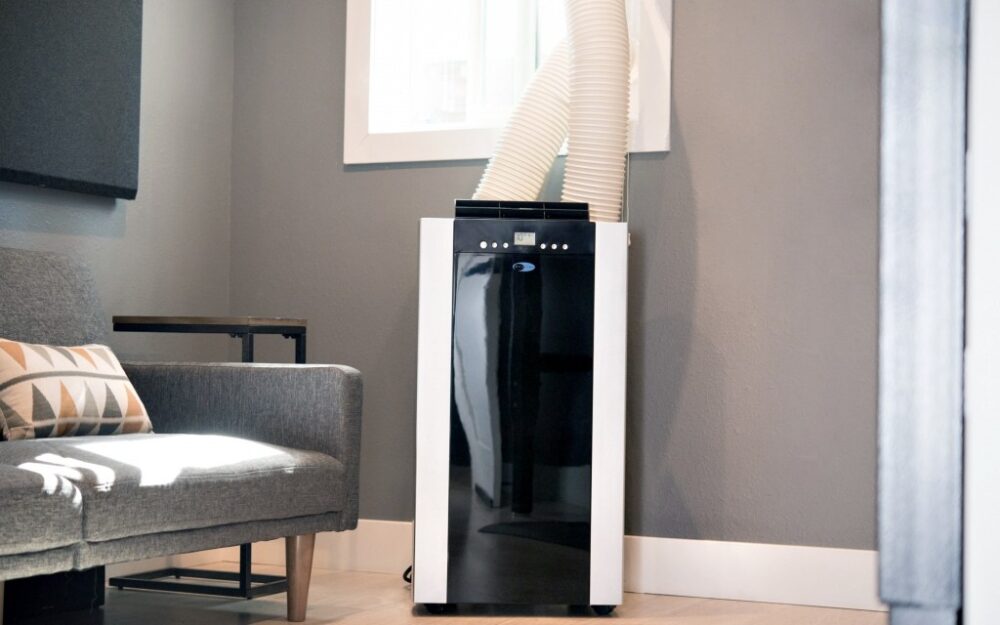

● Dual hose operation
● ECO-FRIENDLY CFC free GREEN R-32 refrigerant
● Lead free RoHS compliant components

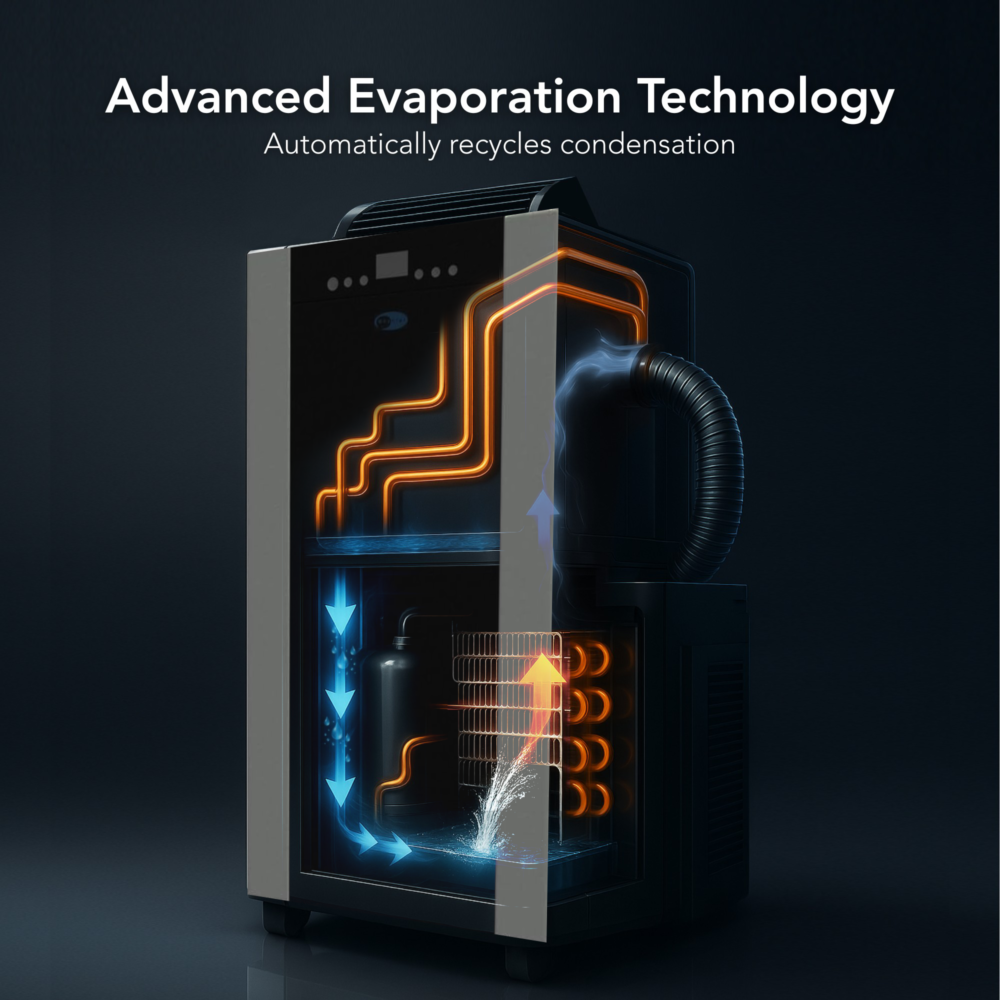

● Patented auto drain function fully exhausts all condensate automatically in most environments in cooling and dehumidifying modes

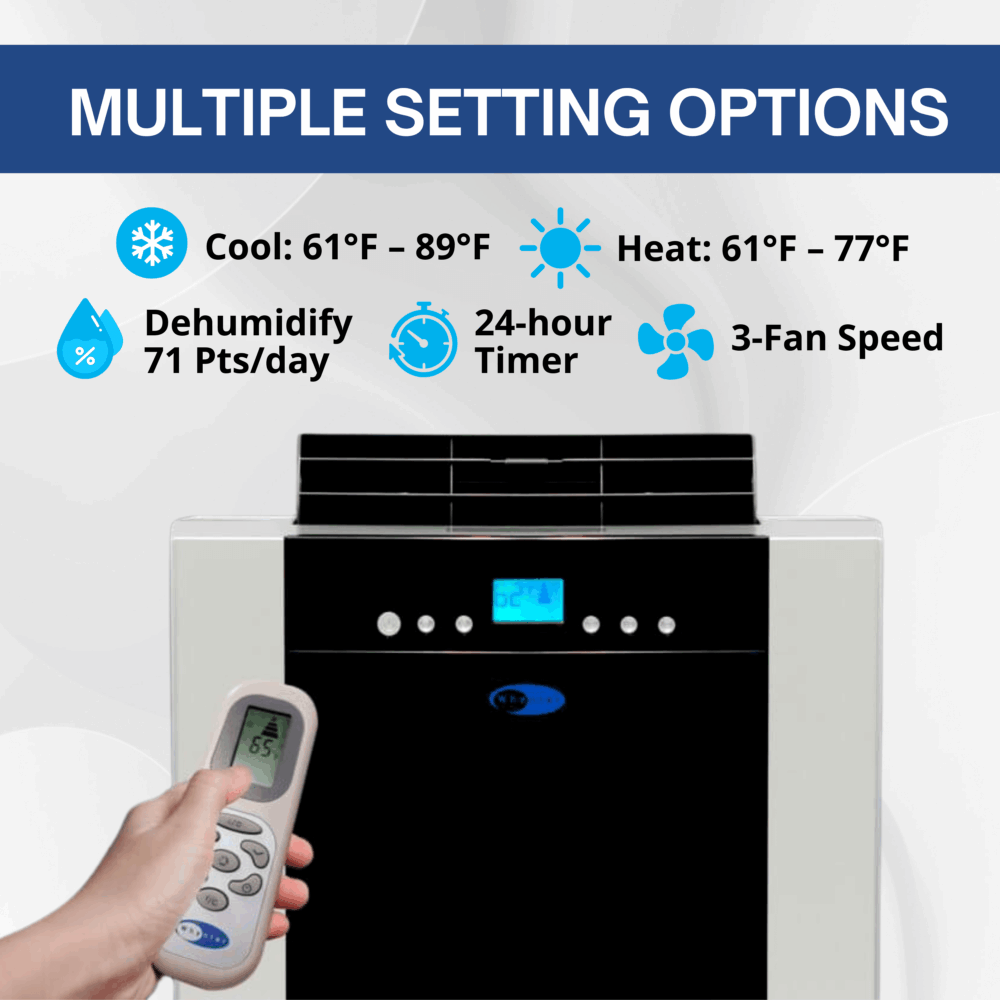

● Four operational modes: Air conditioner, fan, dehumidifier or heat
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 71 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds

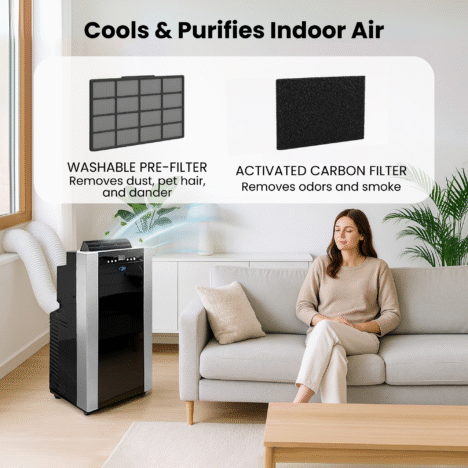

● Activated carbon air filter and washable pre-filter
● Cooling thermostatic control (61°F – 89°F)
● Heating thermostatic control in ambient conditions above 45° F (61°F – 77°F)
● Casters for easy mobility
● 24 hour programmable timer

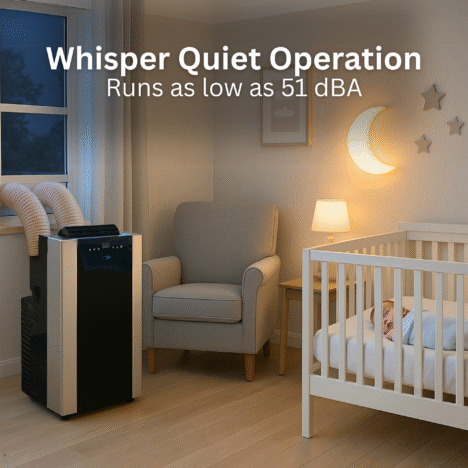

● Noise level (dBA): <51 low/ <56 high
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Exhaust/ Intake Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-32
● Air Flow (at high speed): 430 m3/h / 253 CFM
● Maximum power consumption in cooling : 1300 W  / 11.6 A
● Maximum power consumption in heating : 1000 W / 11.6 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 16″ W x 19″ D x 35.5″ H
● Package dimensions: 21″ W x 19″ D x 46″ H
● Net weight: 85 lbs
● Gross weight: 100 lbs
● UL listed
● UPC 891207001705

*This unit comes with one year warranty and three year warranty on the compressor.

Support

USER MANUAL (English) >>

USER MANUAL (Spanish) >>

ENERGY GUIDE>>

Troubleshooting >>

FAQs

Accessories

Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.

ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com

ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com

Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET2-V1
(Two Whynter hose connector extender sets for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET1-V2
(One Whynter hose connector extender set for 5.9″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET2-V2
(Two Whynter hose connector sets for 5.9″ diameter hose)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com

Activated Carbon Filter: ARC-CF-14S
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com

3M™ Antimicrobial Filter: ARC-FIL-3M
Whynter 3M™ Antimicrobial Filter
Available at:
Ambient Stores
Amazon.com

Storage Bag: ARC-STRGBG-A
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Amazon.com

Optional Intake Hose Pre-Filter: ARC-IHF
Whynter Intake Hose Pre-filter
Available at:
Ambient Stores
Amazon.com

Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com

Complete Accessories Set: ARC-ACC-DUSETG1-V2
Complete Ventilation Set for ARC-14S
Available at:
Ambient Stores

Complete Accessories Set: ARC-ACC-DUSETG1-V1
Complete Ventilation Set for ARC-14S
Available at:
Ambient Stores
