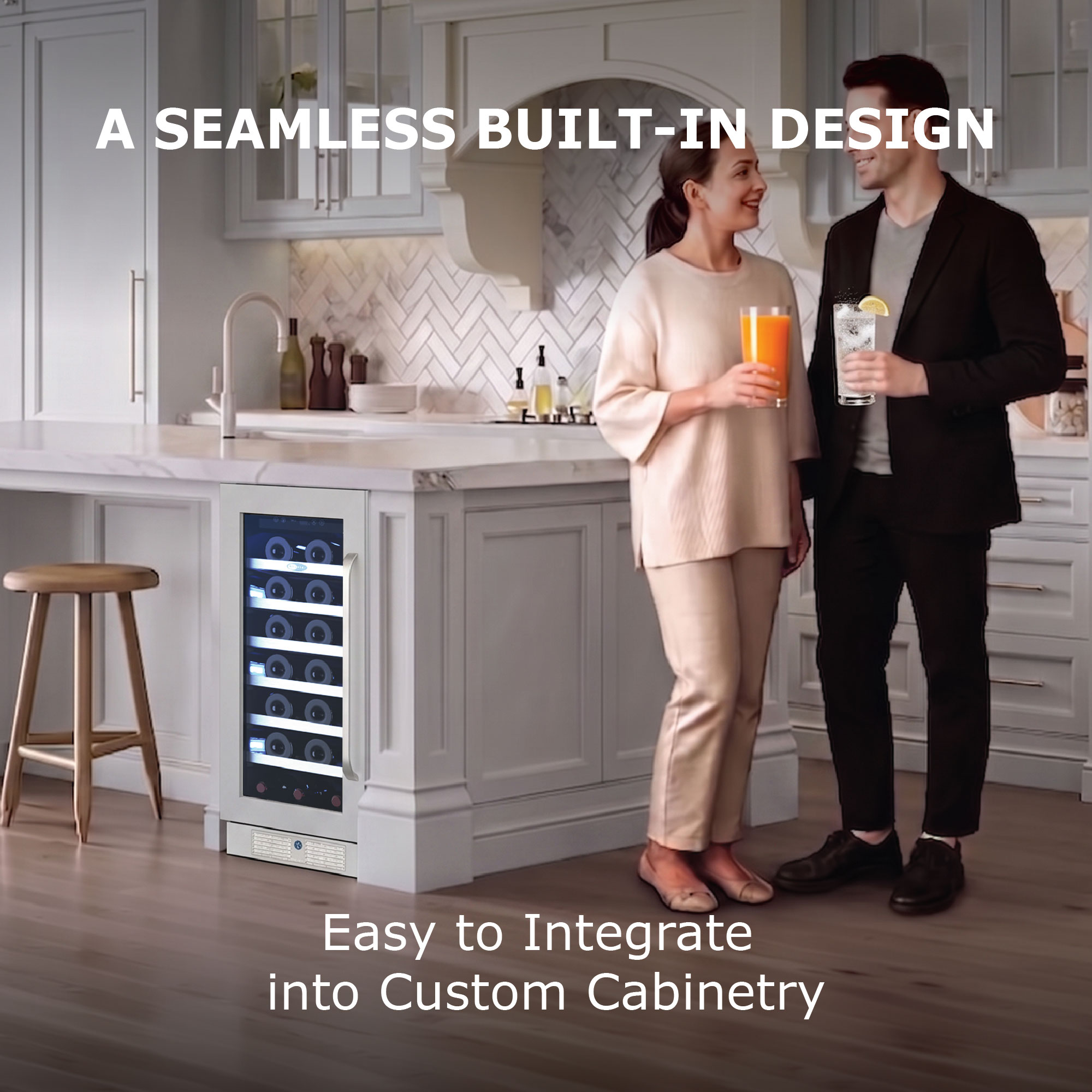

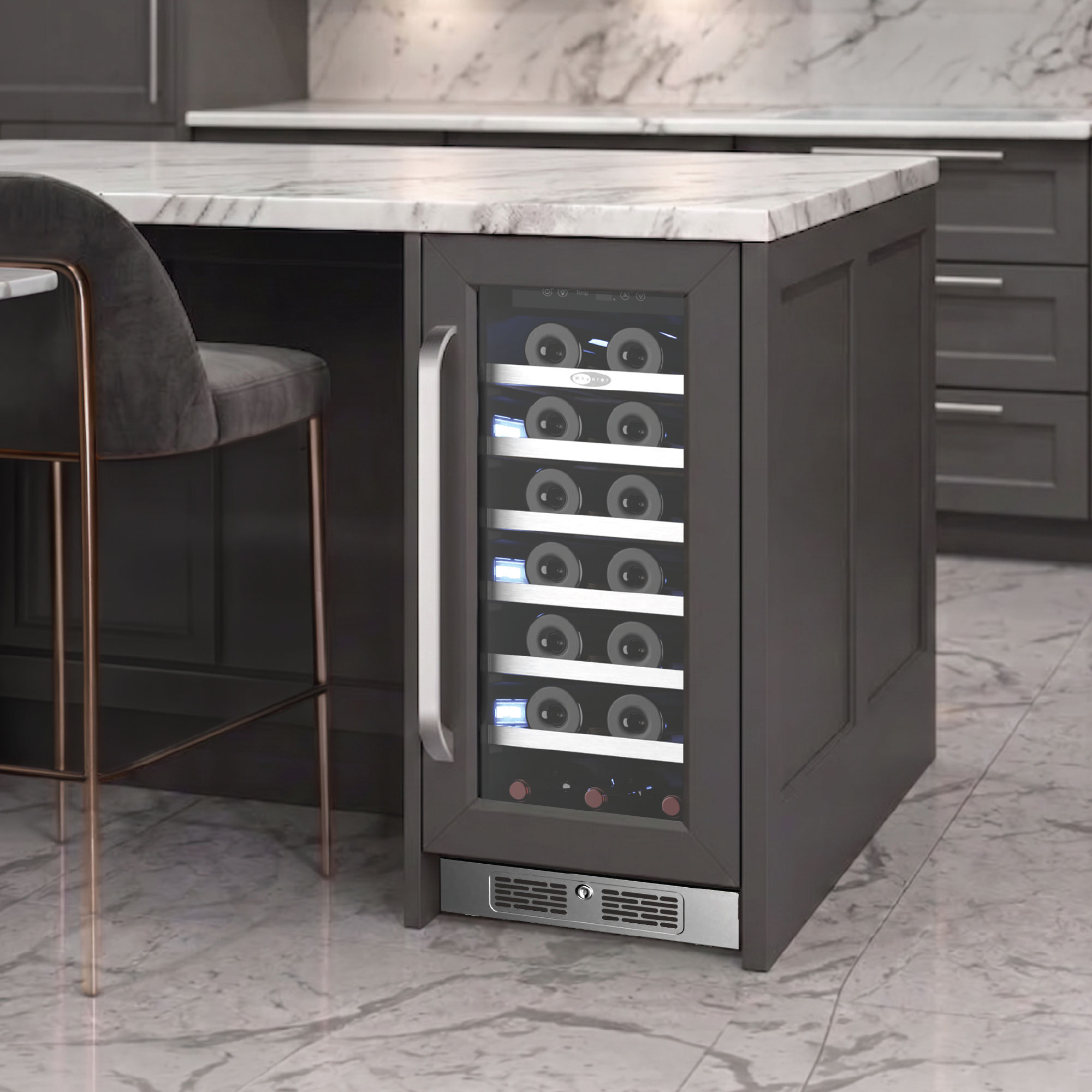

The Whynter PRW-330-WN 15″ Panel Ready Wine Refrigerator provides compact single-zone storage for up to 33 standard wine bottles with a dependable 41°F–68°F temperature range. Its panel-ready door accepts a custom 3/4″ cabinet panel for a seamless built-in look, while a variable inverter compressor with fan-forced circulation delivers precise, even cooling.
Smart digital controls with temperature memory, three-color interior LED lighting, R600a refrigerant, an activated carbon filter, and a cylinder security lock round out a unit that’s Energy Star rated and C-US SGS listed, an excellent fit for kitchens, home bars, and entertainment spaces.
| Bottle Capacity | 33 standard 750 ml wine bottles |
|---|---|
| Zone Type | Single |
| Installation Type | Built-in |
| Nominal Width | 15" |
| Indoor / Outdoor Rated | Indoor |
| Temperature Range | 41°F – 68°F (5°C – 20°C) |
| Celsius Option | Yes |
| Temperature Memory | Yes |
| Cooling System Type | Inverter Compressor |
| Air Circulation | Fan-forced |
| Refrigerant | R600a |
| Carbon Filter | Yes |
| Door Type | Panel-ready |
| Door Configuration | Single door |
| Glass Type | Double tempered glass panel |
| Reversible Door | Yes |
| Door Lock | Yes – security lock and keys |
| Door Alarm | Yes |

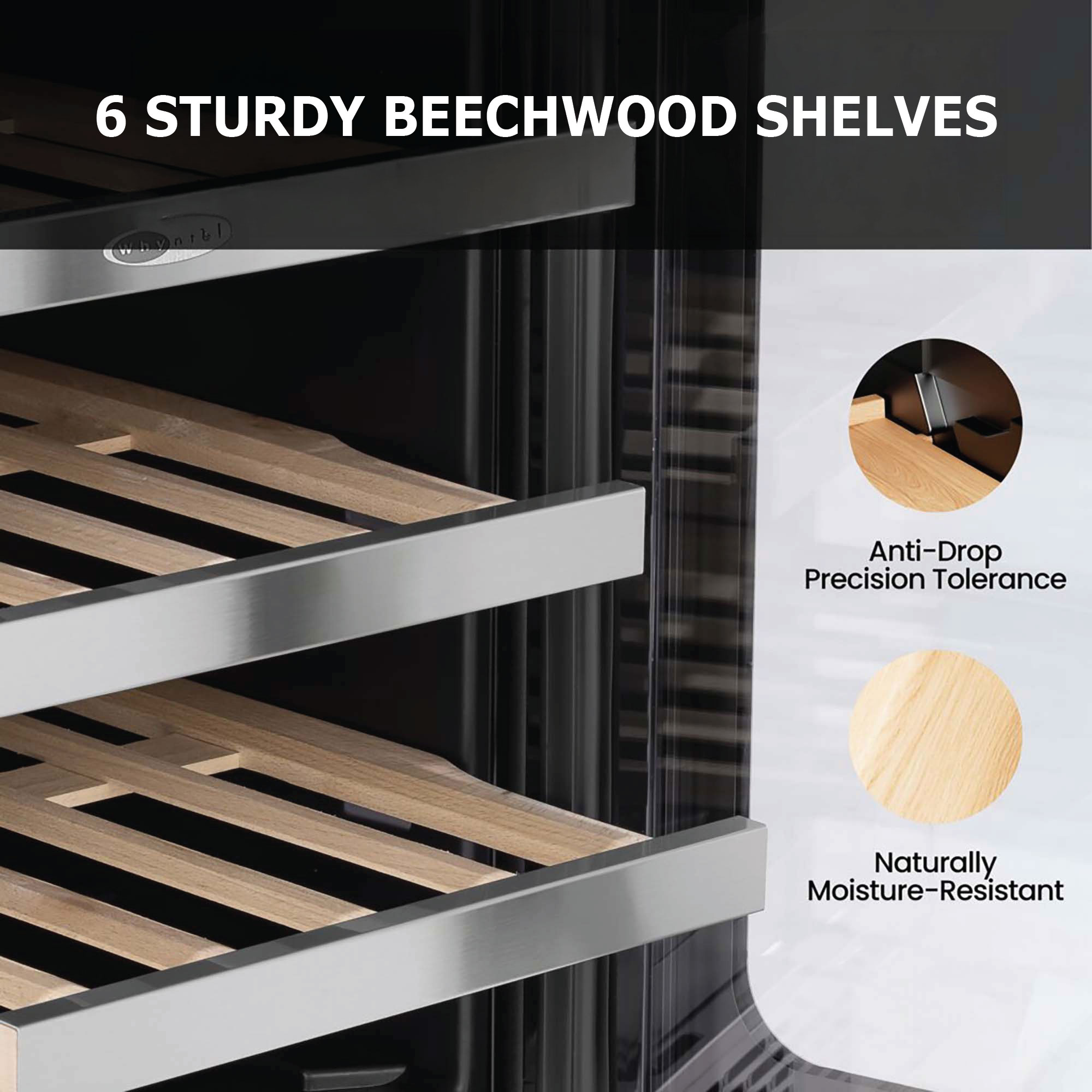

| Shelf Type | 6 wood shelves (5 bottles each) plus 3 bottles on the cabinet floor |

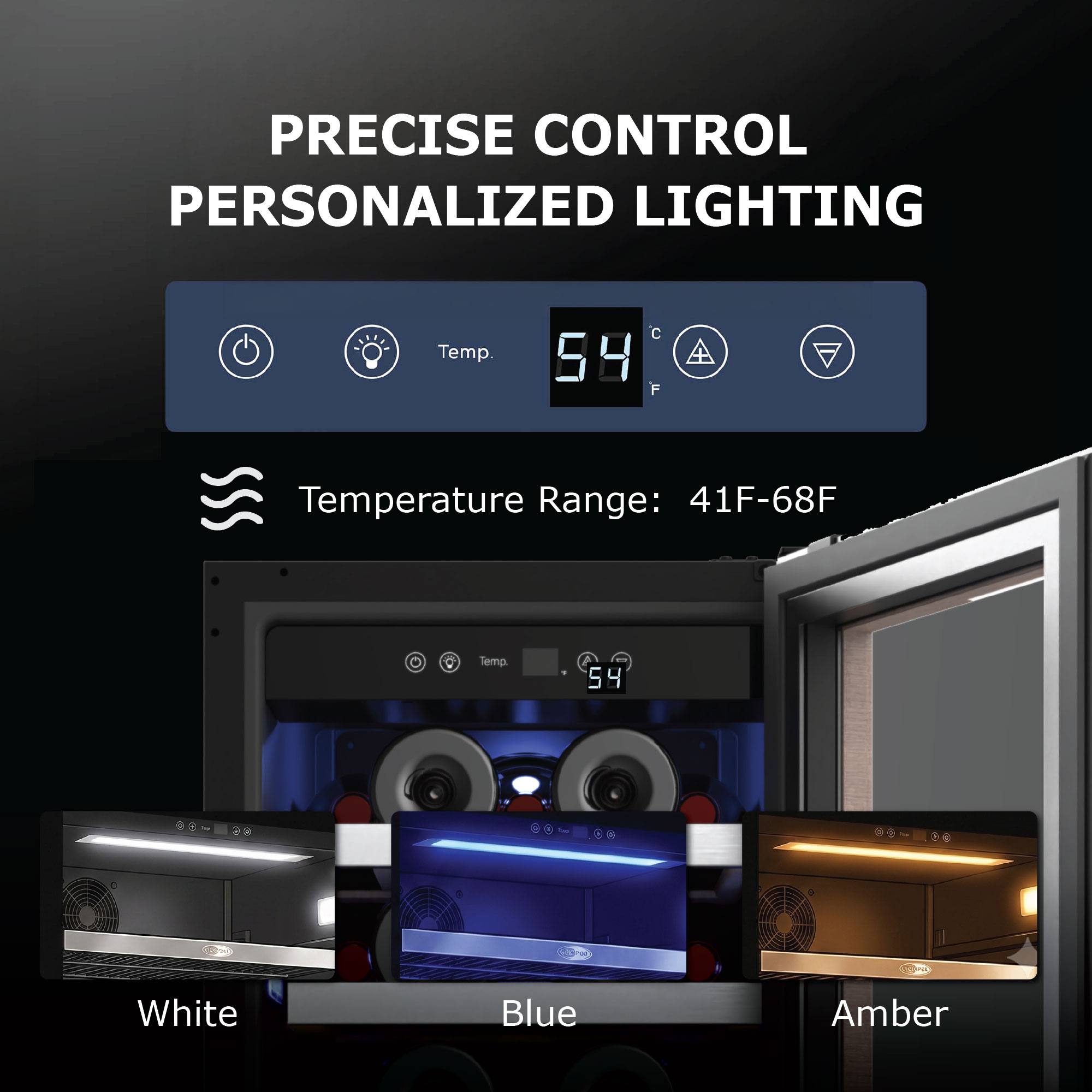

| Interior Light | 3-color interior LED mood lighting (white, blue, amber); Interior LED door frame lighting |
| Control Type | Smart digital control |
| Alarms | Door open (E0), high temperature (HI), low temperature (LO), temperature difference (Et) |
| Front Venting | Yes |
| Cutout Dimensions | 15.05" W x 22.65" D x 34.25" H (minimum cutout) |
| Clearance Requirements | Built-in: min 1/4" (6.35 mm) each side and top; front vent grille must stay unobstructed. Freestanding: 5" (127 mm) back and sides |
| Leveling Legs | 4 adjustable leveling legs |
| Voltage / Frequency | 115 V / 60 Hz |
| Rated Current | 1.2 A |
| ETL / UL Listing | ETL Listed |
| Energy Star Rated | Yes |
| Net Weight | 66 lbs |
| Unit Dimensions | 14.8" W x 22.4" D x 33.9" H |
| Gross Weight (Shipping) | 78 lbs |
| Packaging Dimensions | 18.5" W x 25.7" D x 37.8" H |
| UPC | 850082633128 |
Features

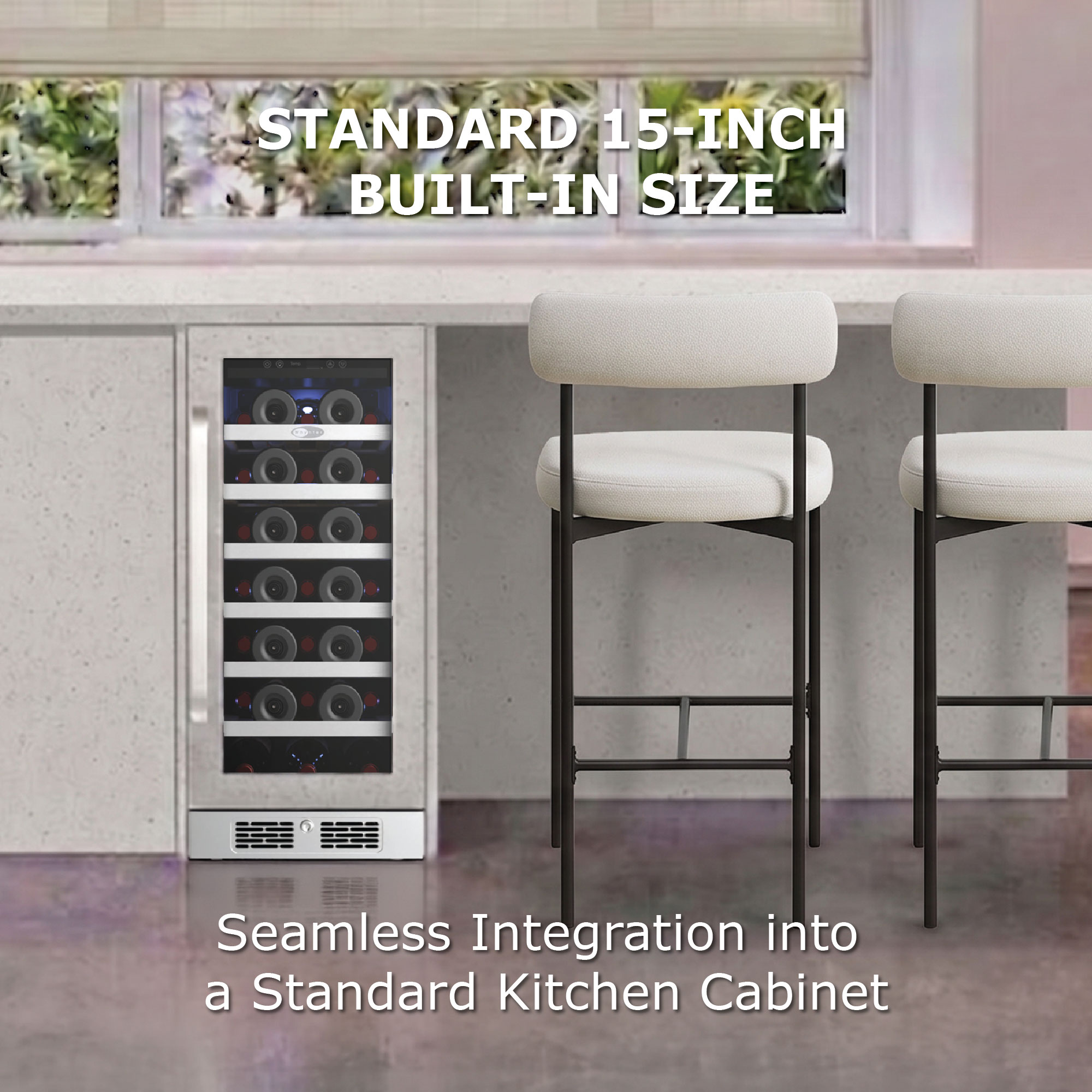

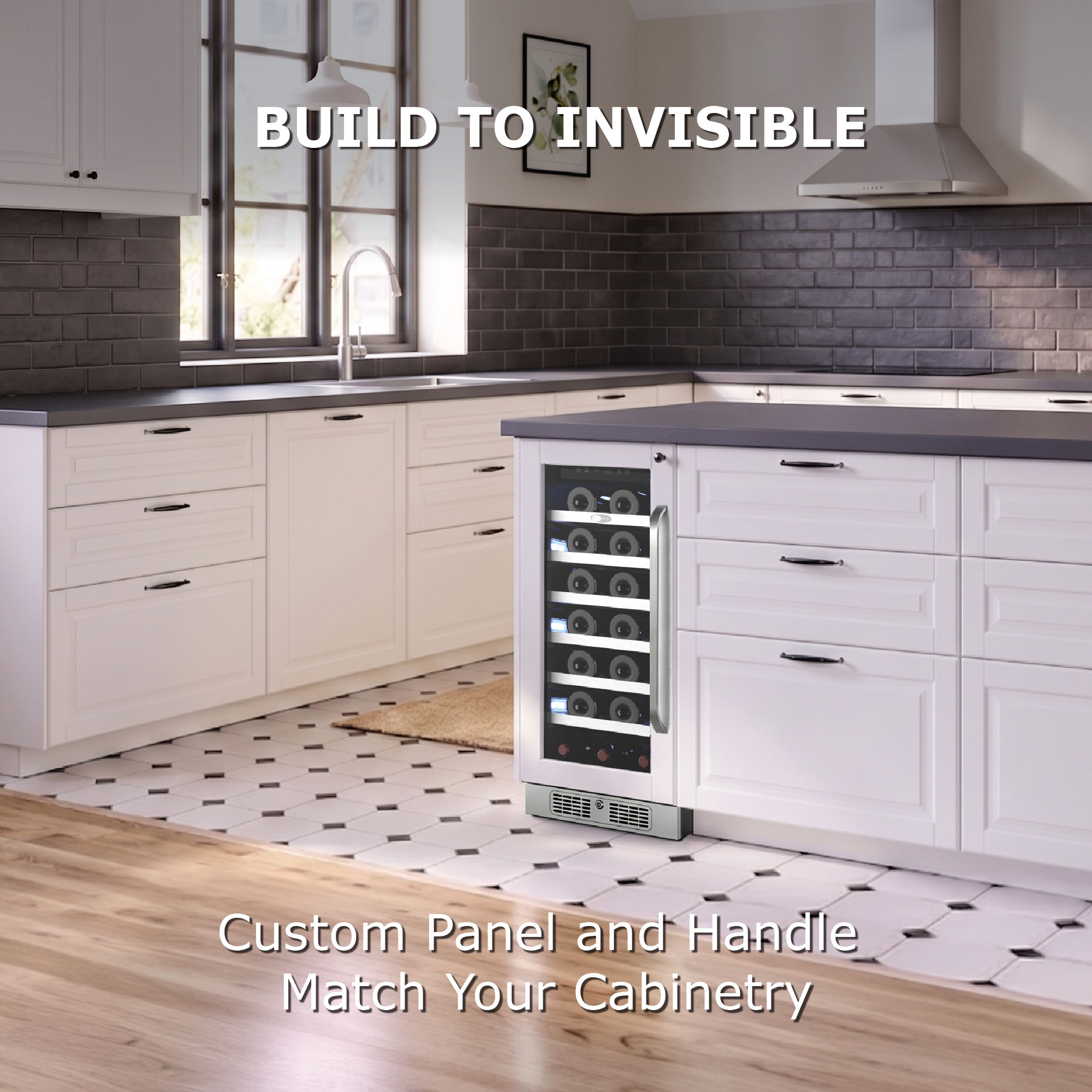

● Architectural Integration

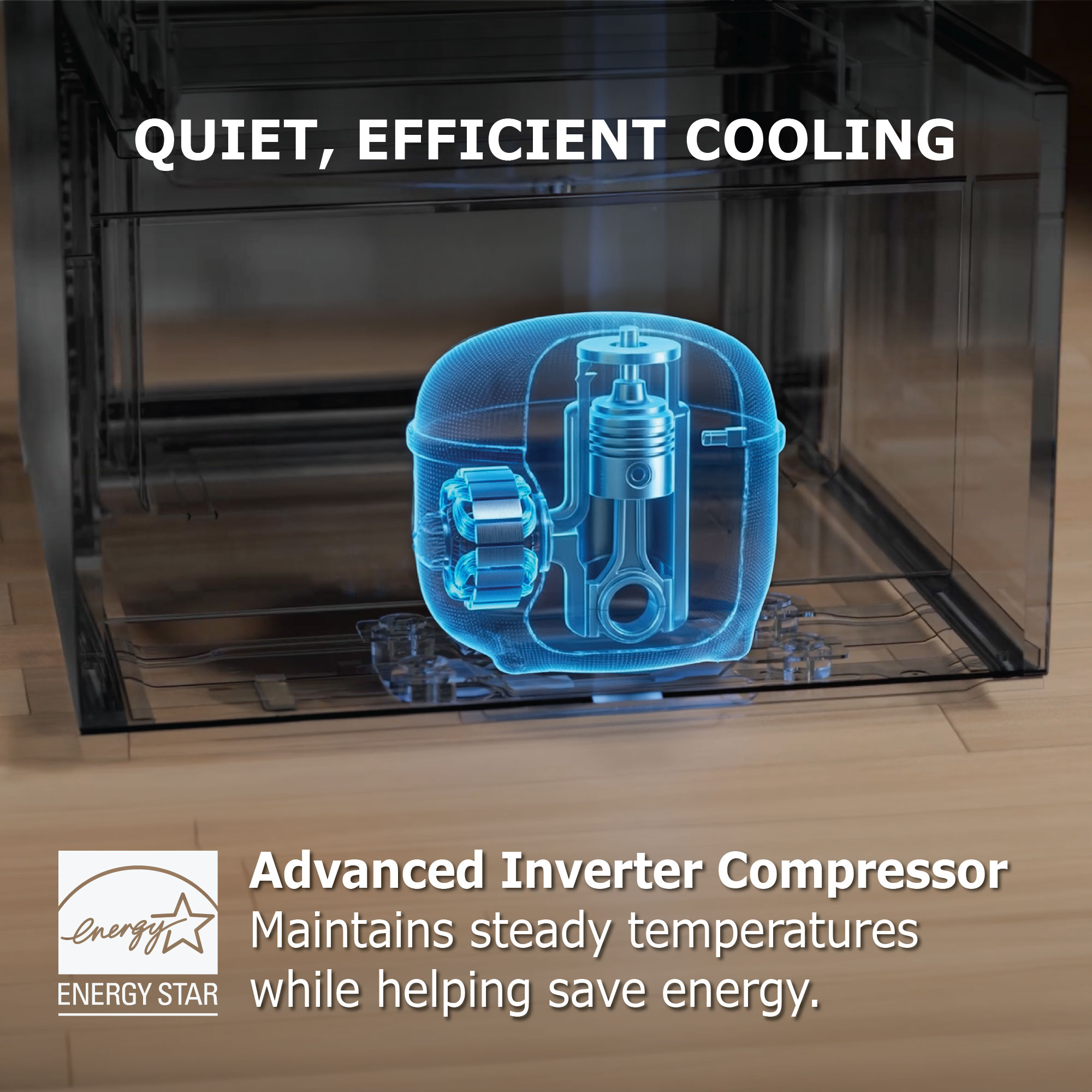

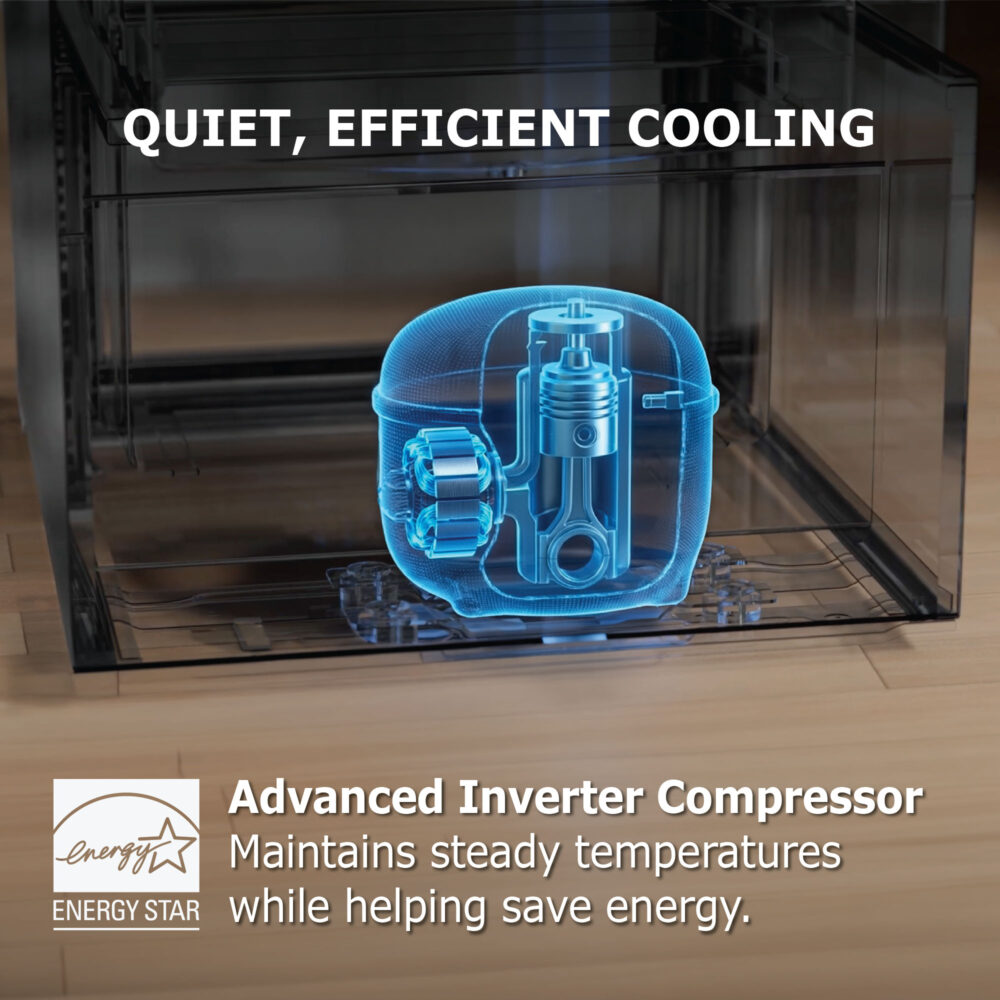

● Variable inverter compressor for precise, efficient, and ultra-quiet Operation
● Energy Star rated
• C-US SGS listed, file 804294
● Smart Digital Control with temperature memory function restores settings after power interruption
● Fahrenheit and Celsius degree temperature indicators
● Internal fan-forced circulation for even temperature distribution

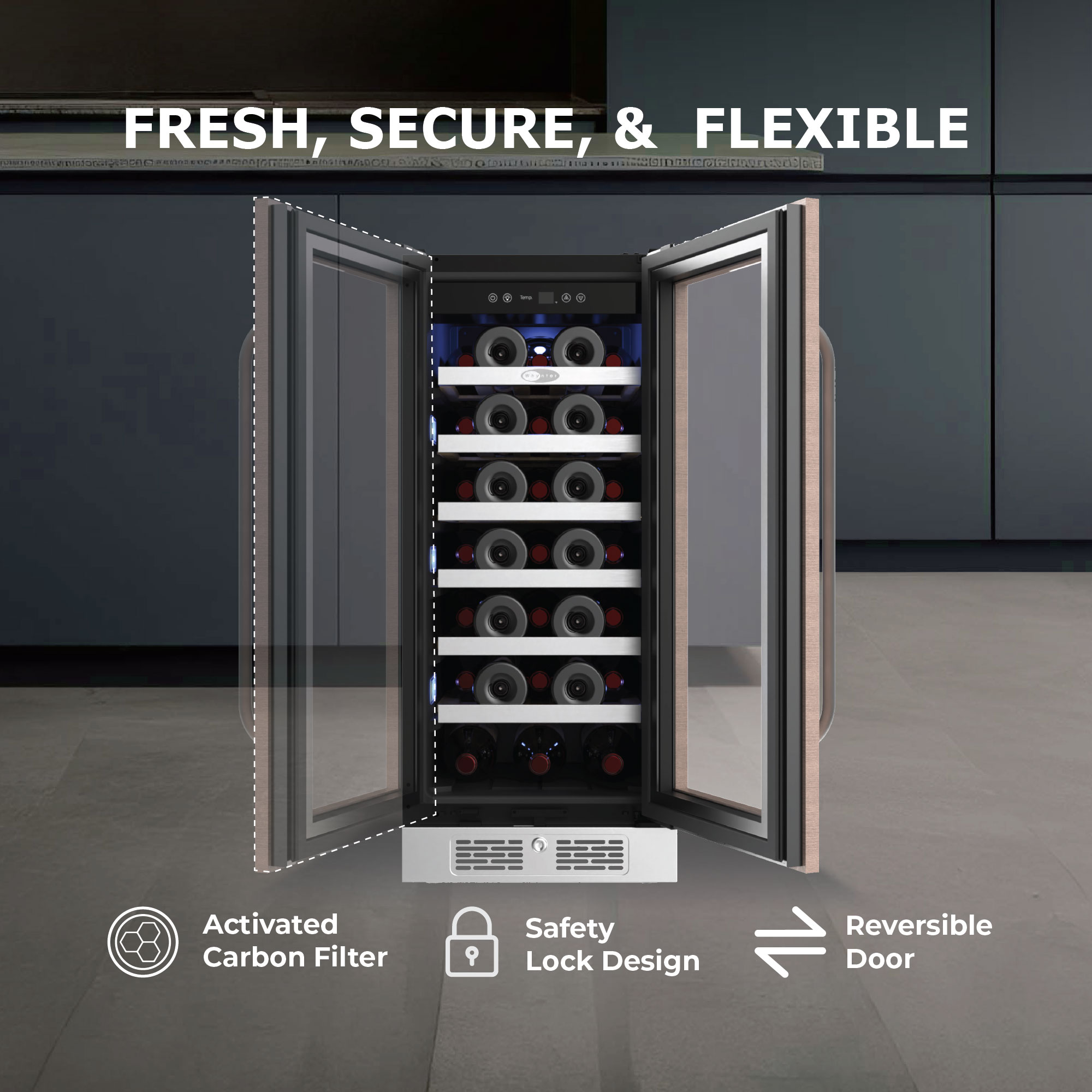

● Activated carbon filter preserves beverage taste by filtering ambient odors
● Cylinder lock and two keys
● 3-color interior LED mood lighting (white, blue, amber)
● Interior LED door frame lighting

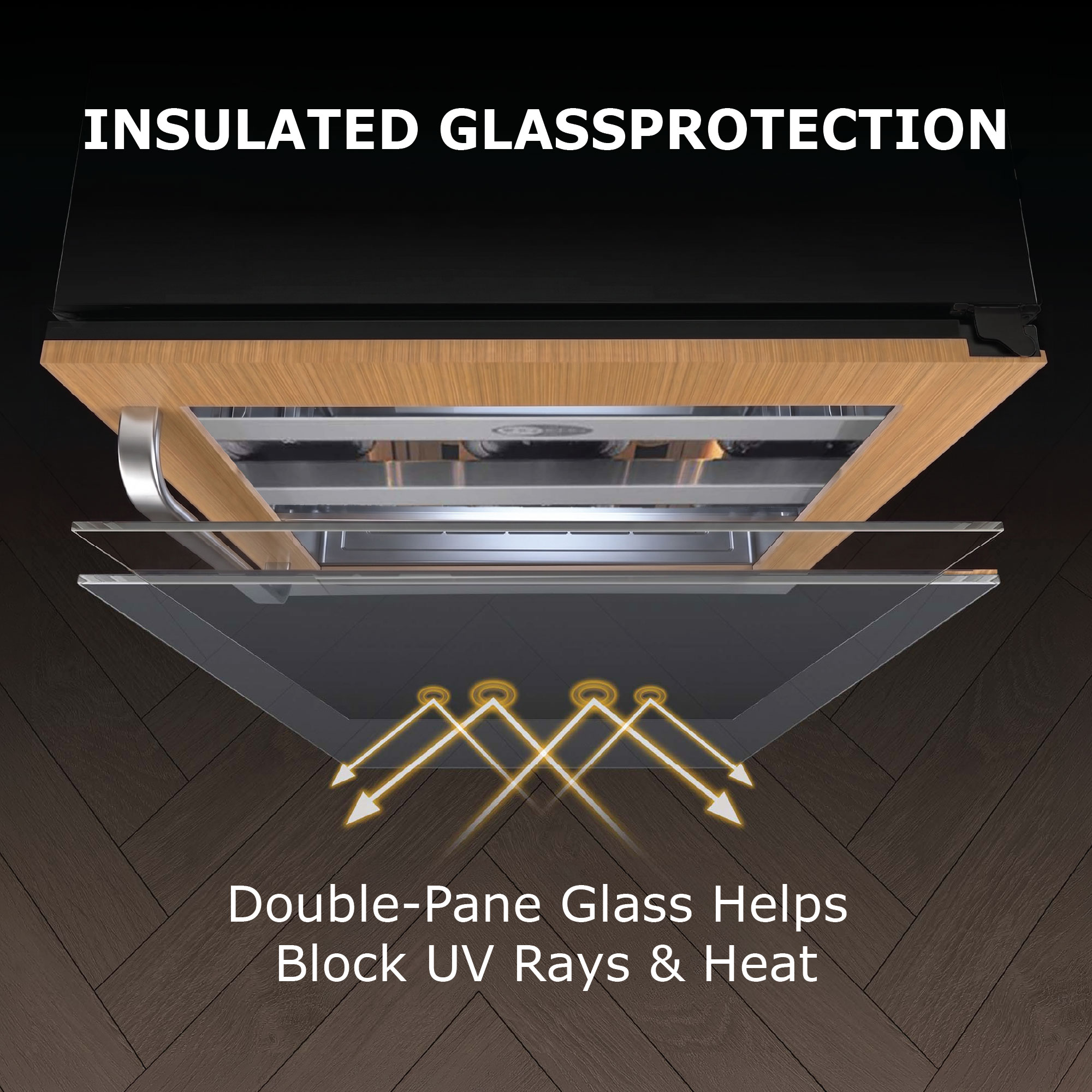

● Double tempered glass panel

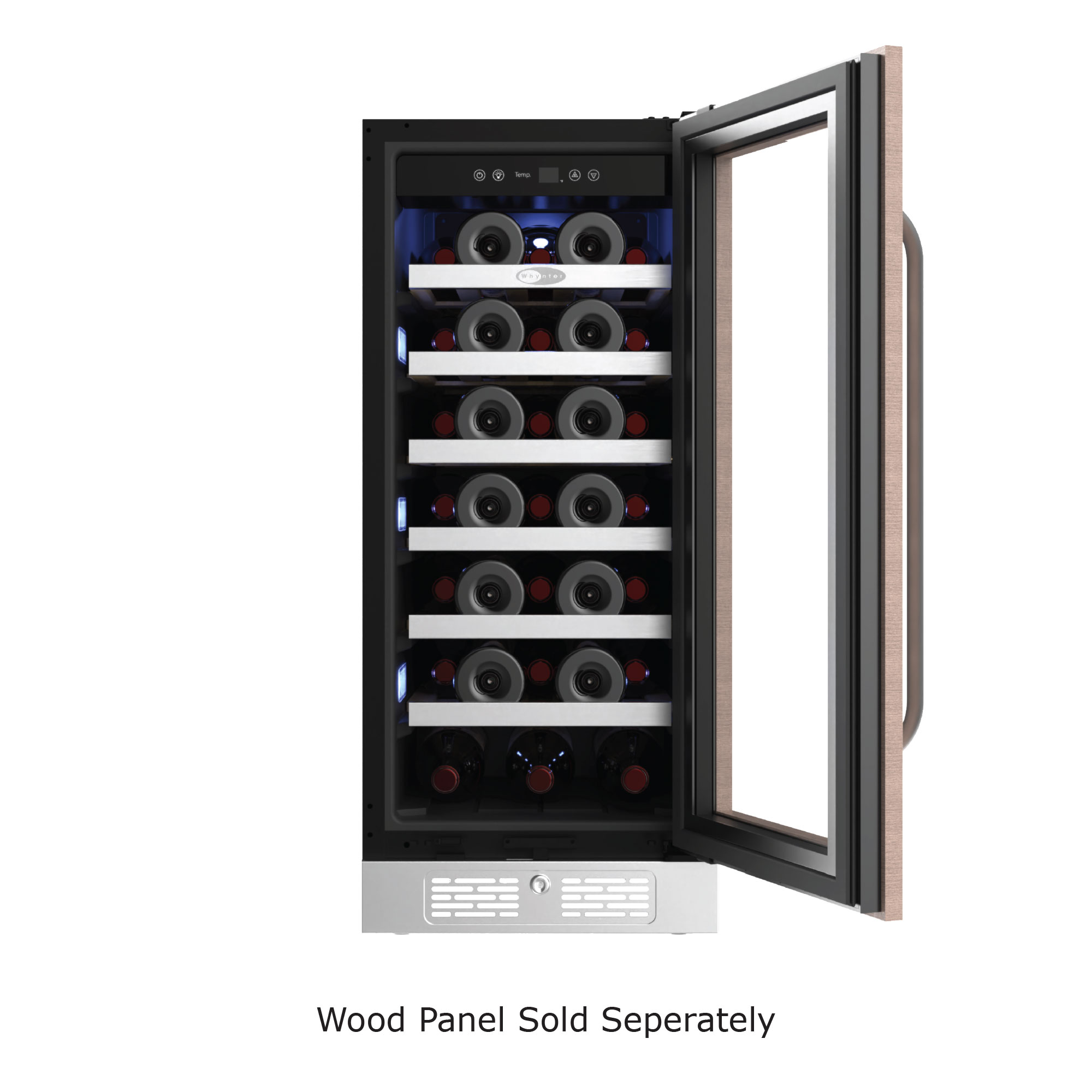

● 33-bottle single-zone wine storage (6 shelves x 5 bottles + 3 on the floor)
● Temperature Range: 41F-68F
● Net Weight: 66 lbs
● Gross Weight: 78 lbs

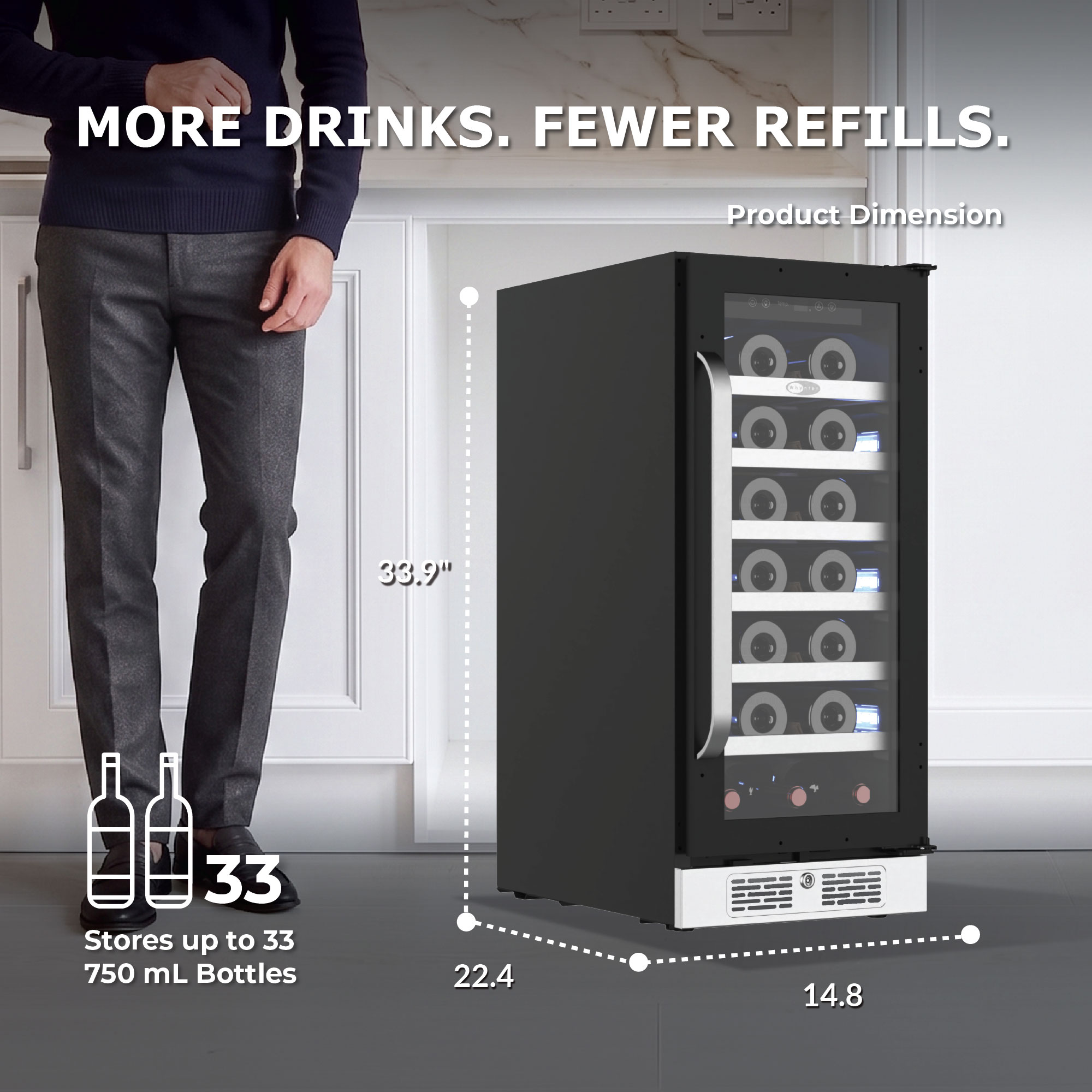

● Unit Dimensions: 14.8″ W x 22.4″ D x 33.9″ H
● Packaging Dimensions: 18.5″ W x 25.7″ D x 37.8″ H

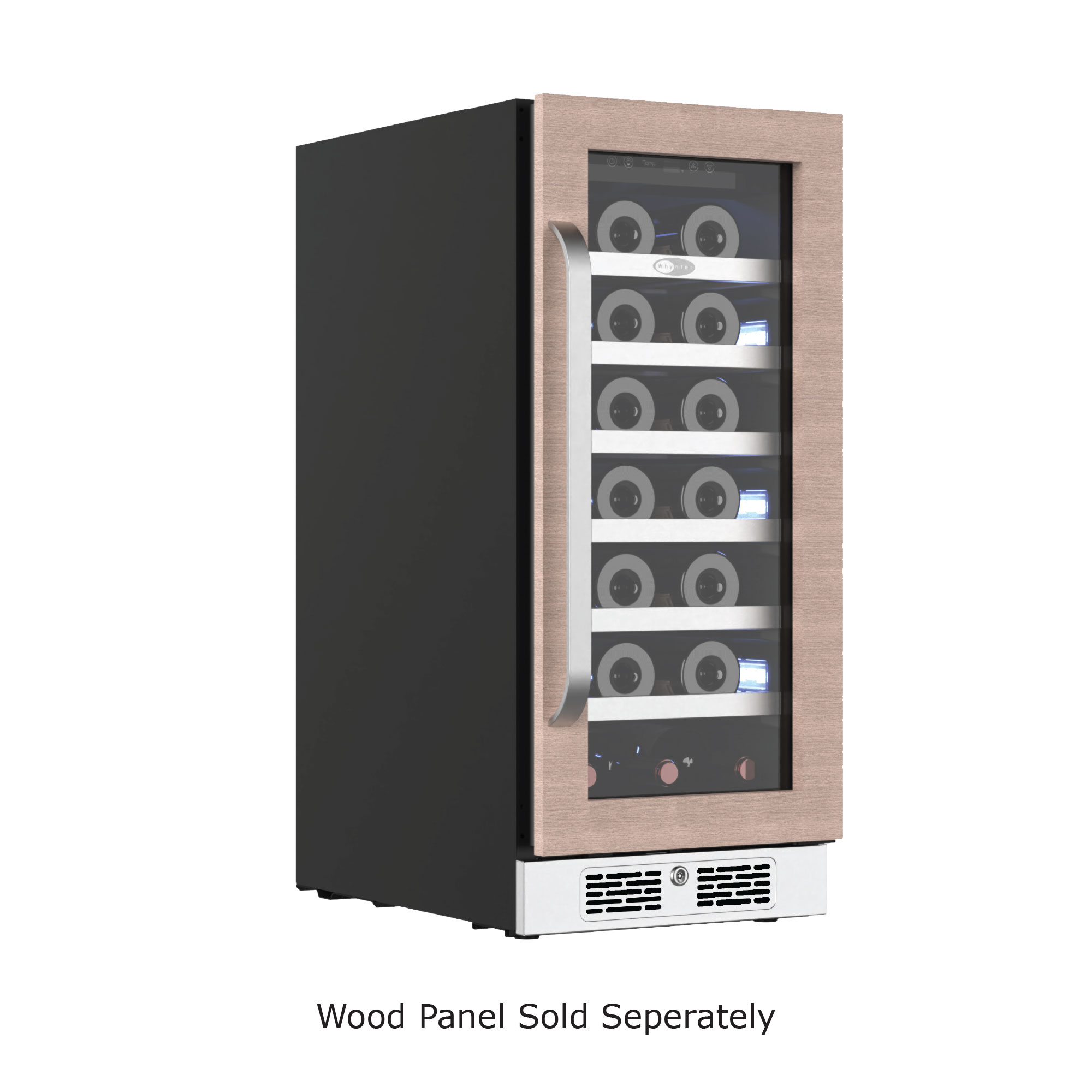

● Custom panel requirements: 23.6″W × 29.9″H (600 × 760 mm), 3/4″ (19 mm) recommended thickness, max 10 lbs
● UPC: 850082633128

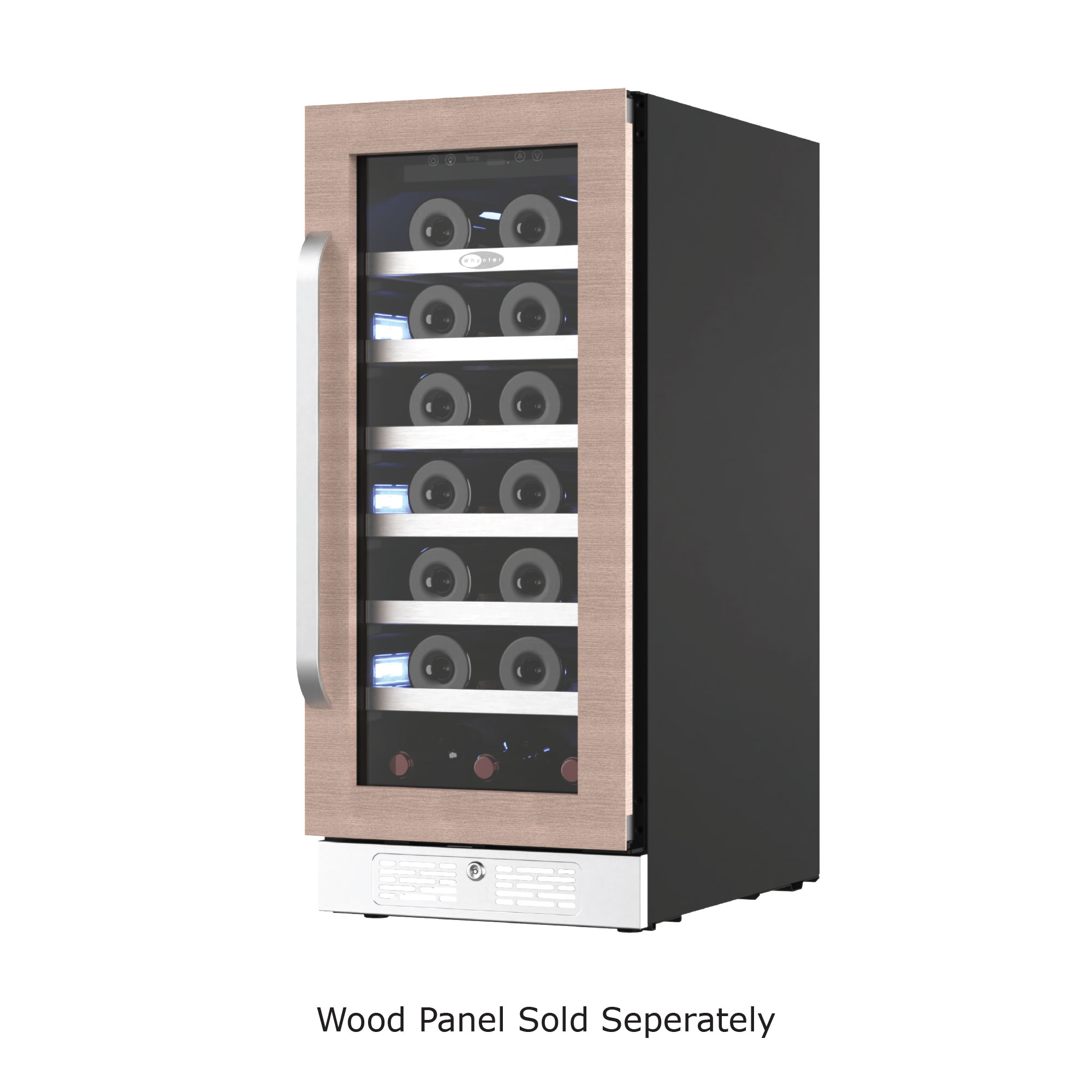

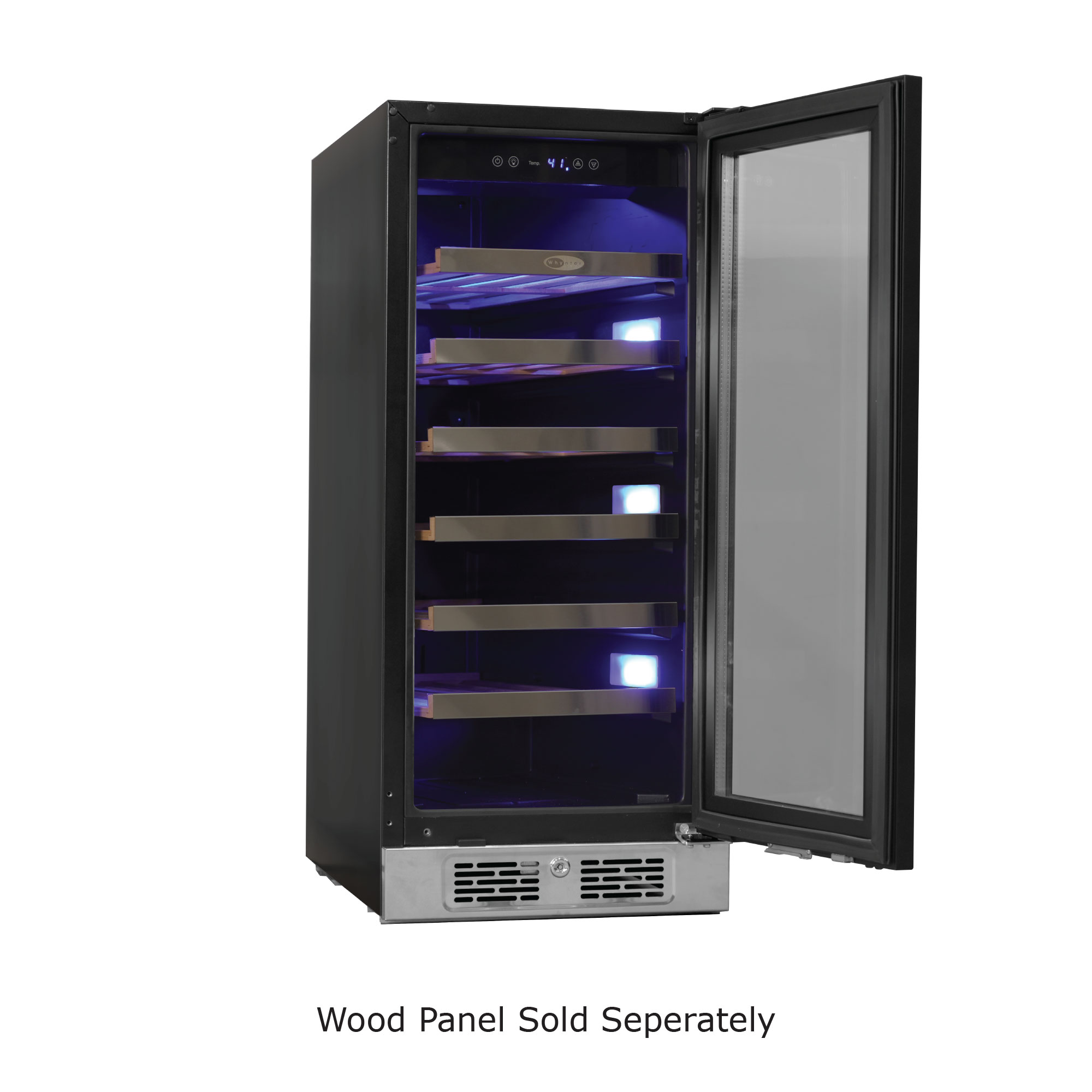

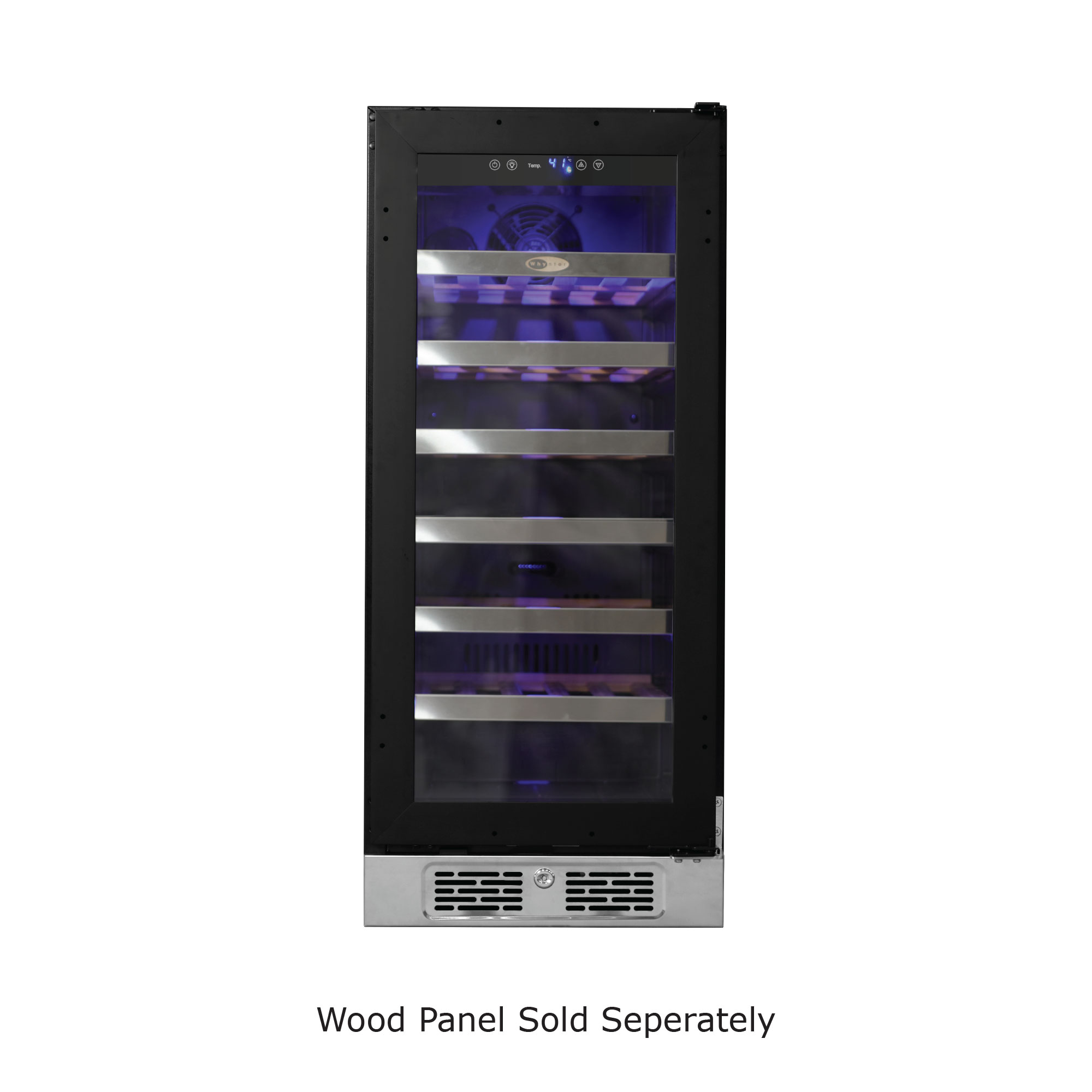

● Note: Wood panel sold separately. Professional installation required for panel alignment, hinge adjustment, and ventilation
● Custom Panel Requirements:
● 23.6″W × 29.9″H (600 × 760 mm), 3/4″ (19 mm) recommended thickness, max 10 lbs
● Recommended thickness 3/4″ (19 mm); maximum 10 lbs per panel
● Wood panels are sold separately
● Professional installation required for panel alignment, hinge adjustment, and ventilation
