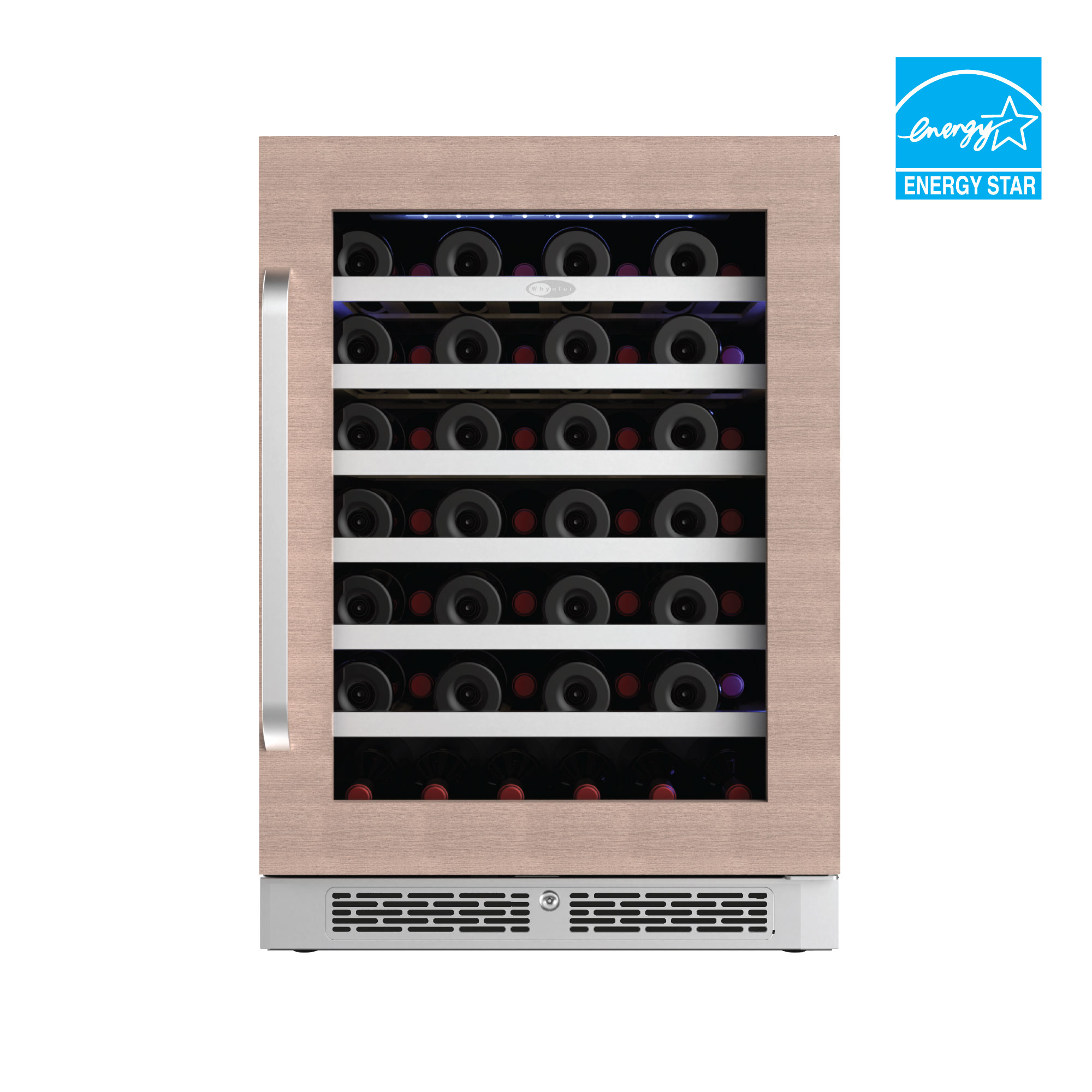

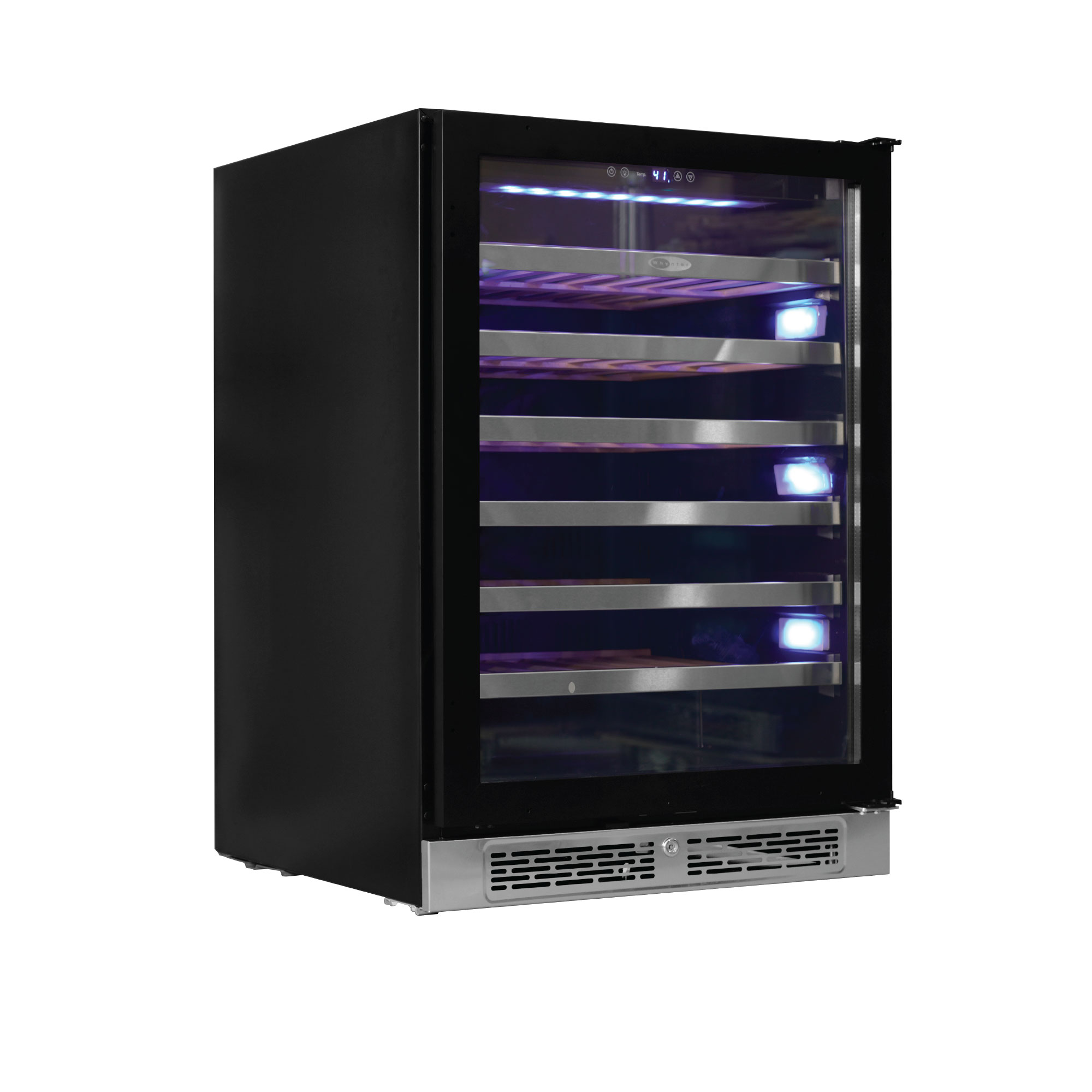

Whynter 24″ Panel-Ready Wine Refrigerator 54 Bottles | PRW-540-WN
Product Summary

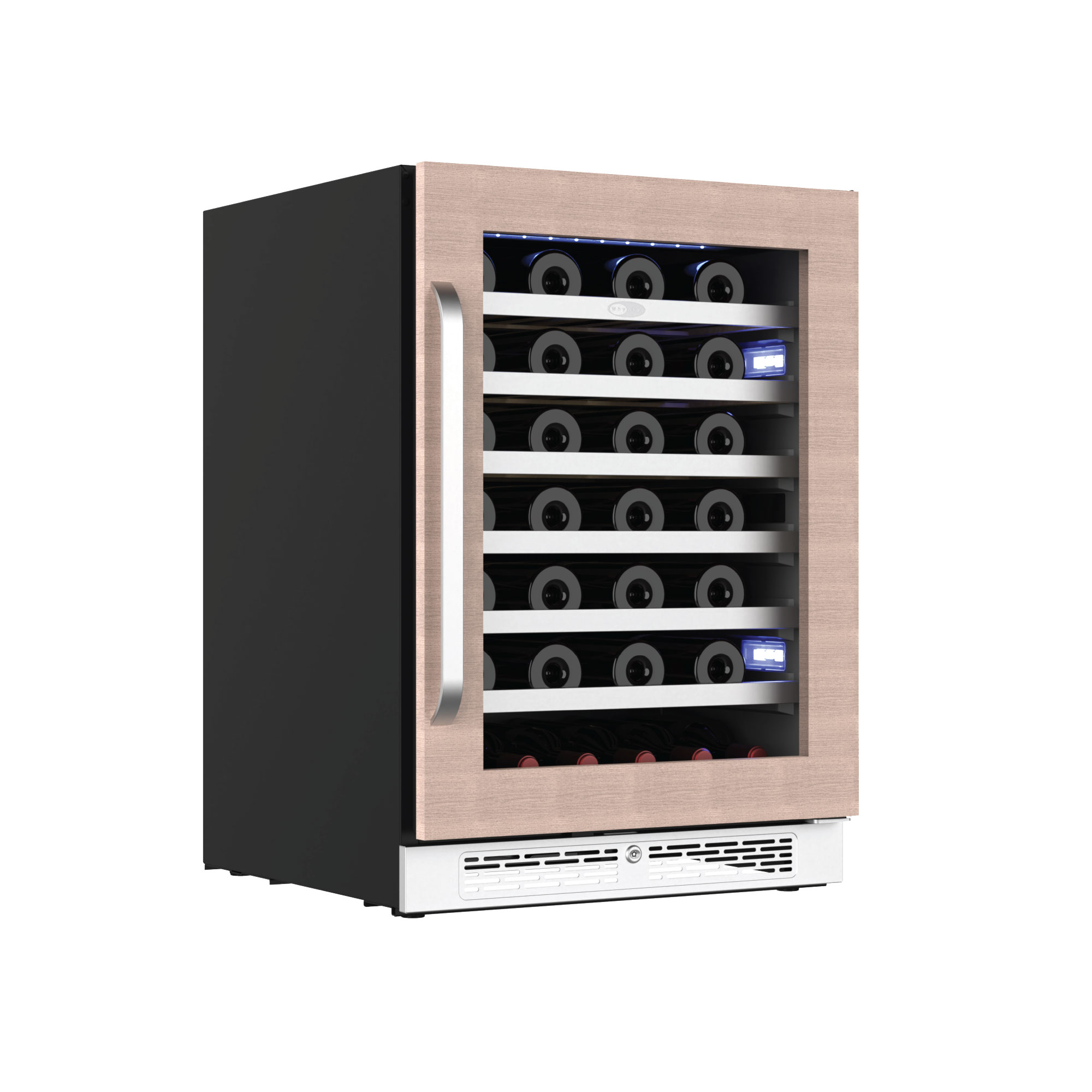

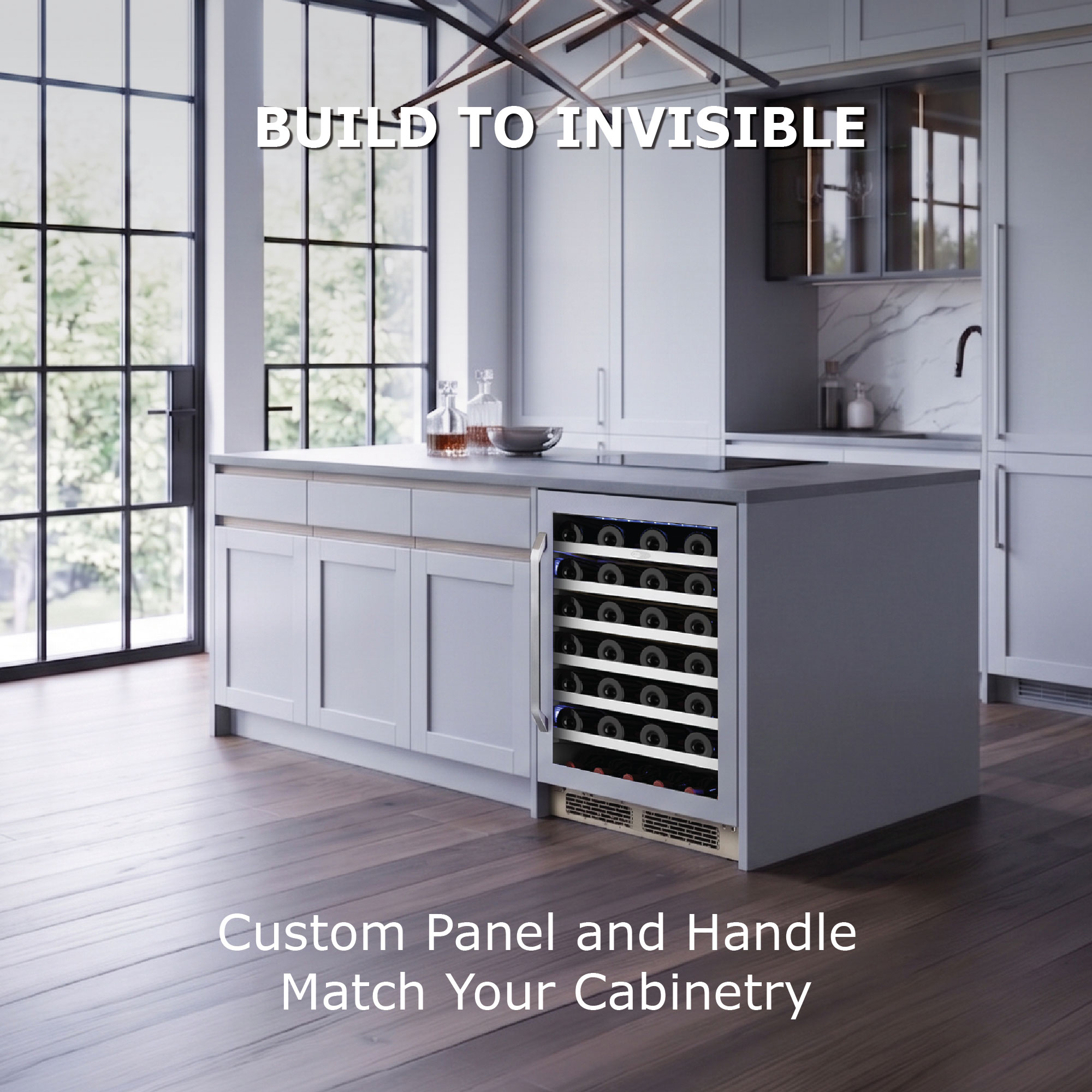

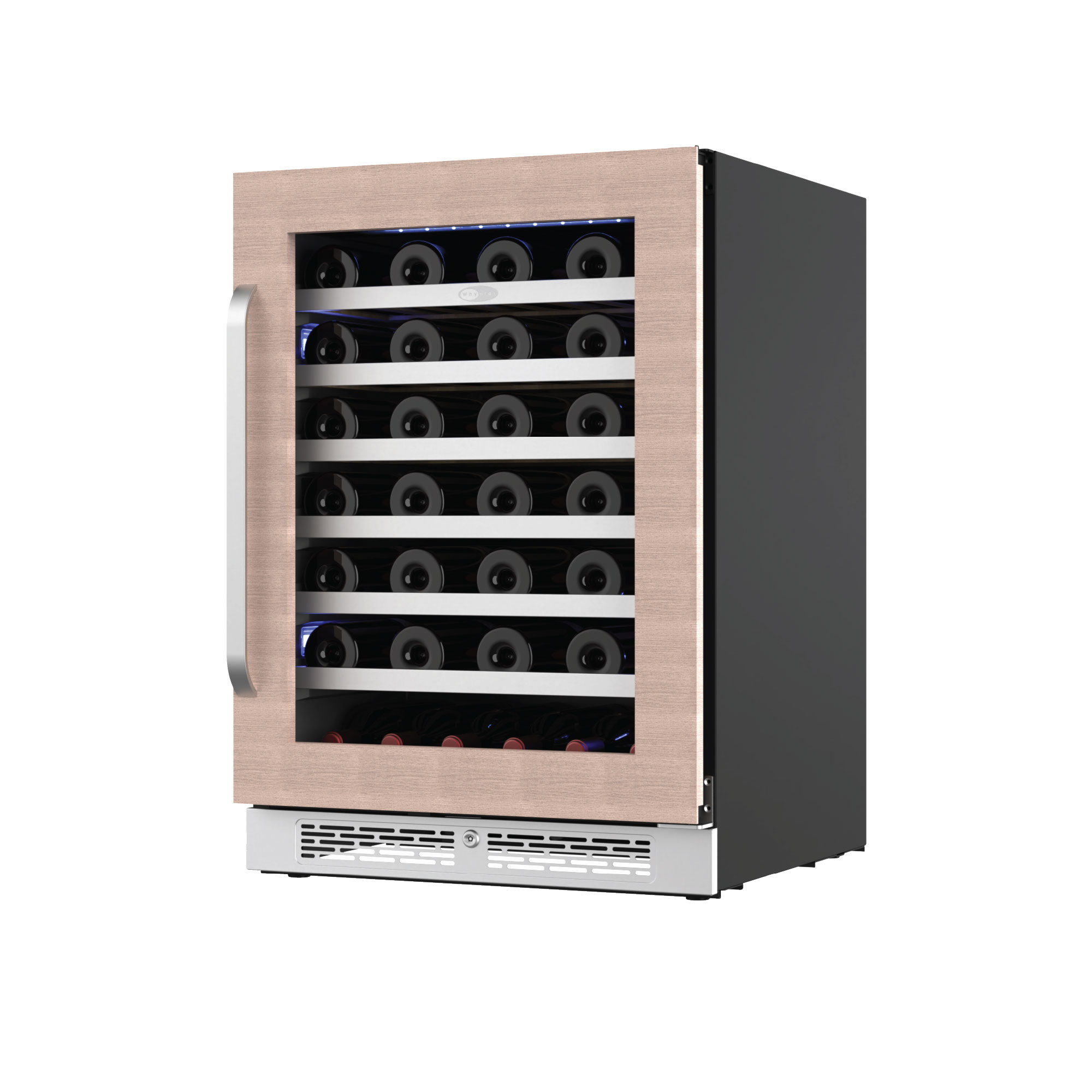

The Whynter PRW-540-WN 24″ Panel Ready Wine Refrigerator offers dedicated single-zone storage for up to 54 standard wine bottles with a consistent 41°F–68°F temperature range. Its panel-ready door accepts a custom 3/4″ cabinet panel for a seamless built-in look, while a variable inverter compressor with fan-forced circulation delivers precise, even cooling.

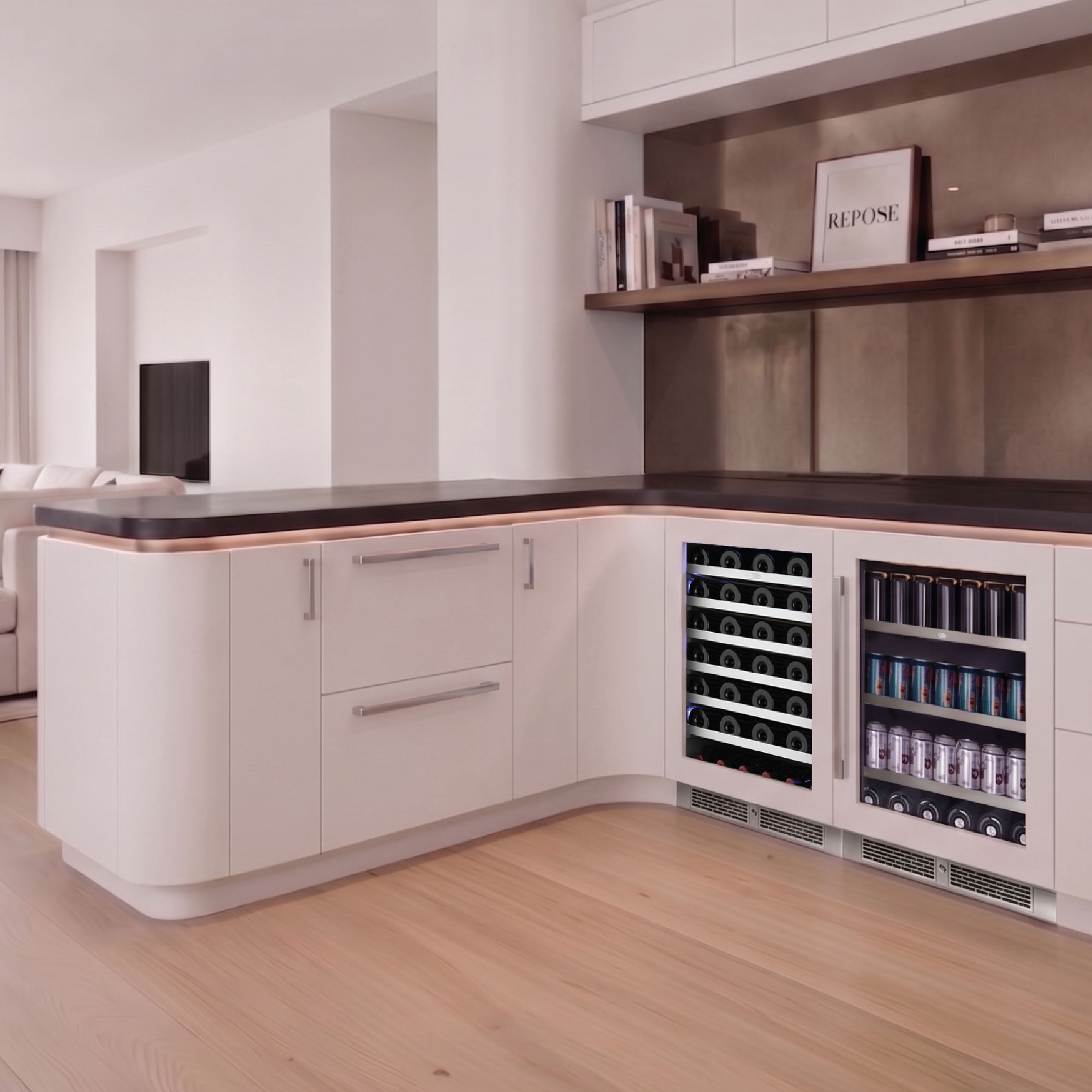

Smart digital controls with temperature memory, three-color interior LED lighting, R600a refrigerant, an activated carbon filter, and a cylinder security lock round out a unit that’s Energy Star rated and ETL listed, an excellent fit for kitchens, home bars, and entertainment spaces.
Product Video
Specification
Additional information
| Bottle Capacity | 54 standard 750 ml wine bottles |
|---|---|
| Zone Type | Single |

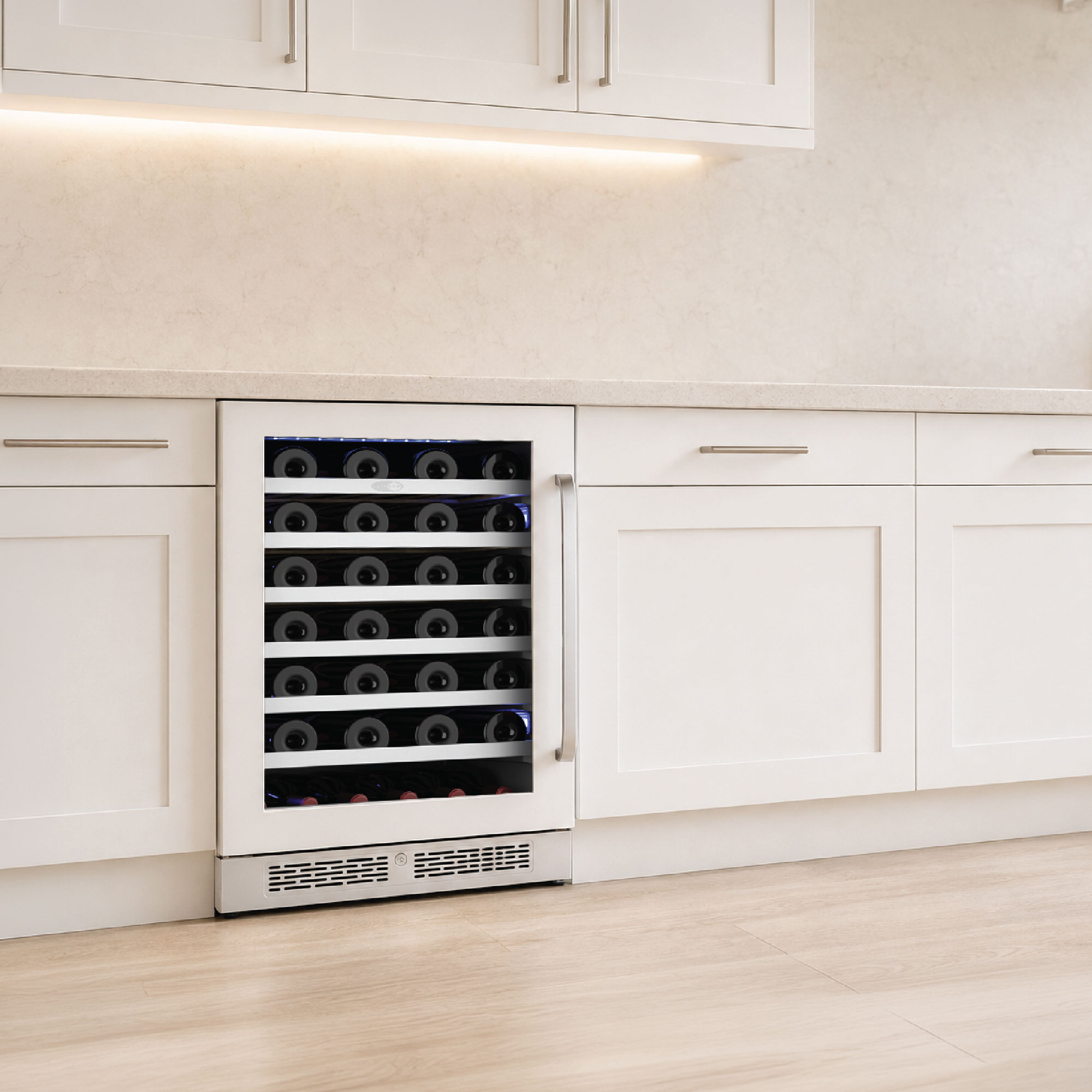

| Installation Type | Built-in |
| Nominal Width | 24" |
| Indoor / Outdoor Rated | Indoor |
| Temperature Range | 41°F – 68°F (5°C – 20°C) |
| Celsius Option | Yes |
| Temperature Memory | Yes |
| Cooling System Type | Inverter Compressor |
| Air Circulation | Fan-forced |
| Refrigerant | R600a |
| Carbon Filter | Yes |
| Door Type | Panel-ready |
| Door Configuration | Single door |

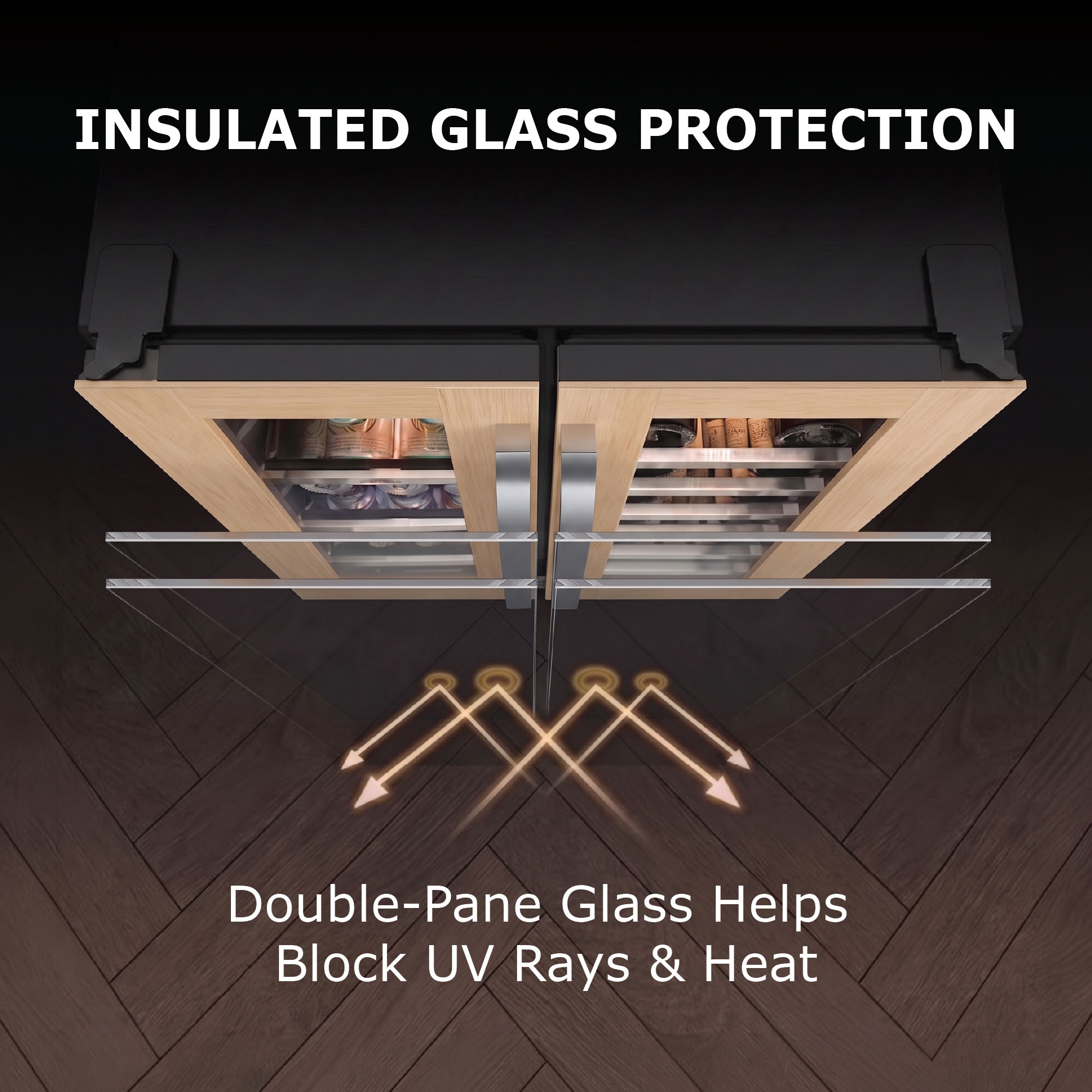

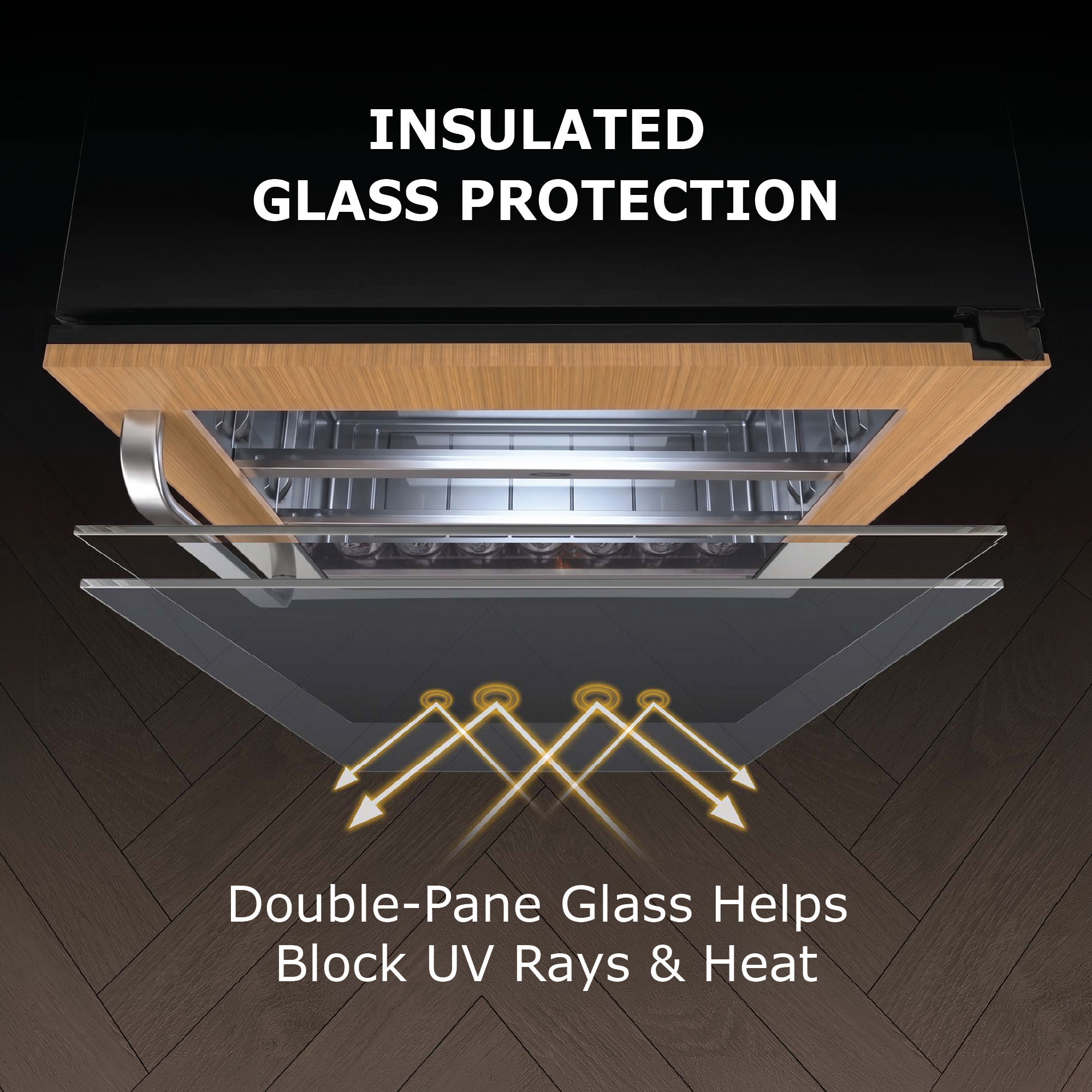

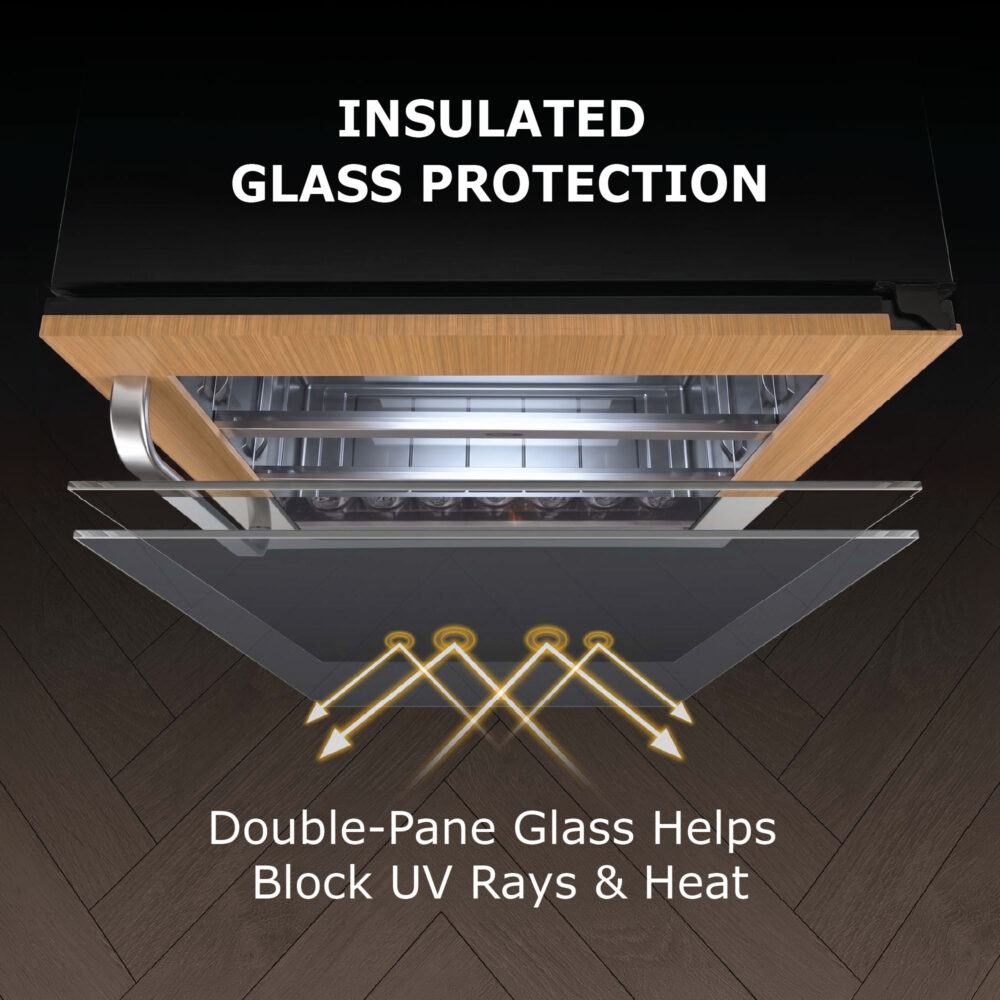

| Glass Type | Double tempered glass panel |
| Reversible Door | Yes |
| Door Lock | Yes – security lock and keys |
| Door Alarm | Yes |
| Custom Panel Requirements | 23.6″W × 29.9″H (600 × 760 mm), 3/4″ (19 mm) recommended thickness, max 10 lbs |

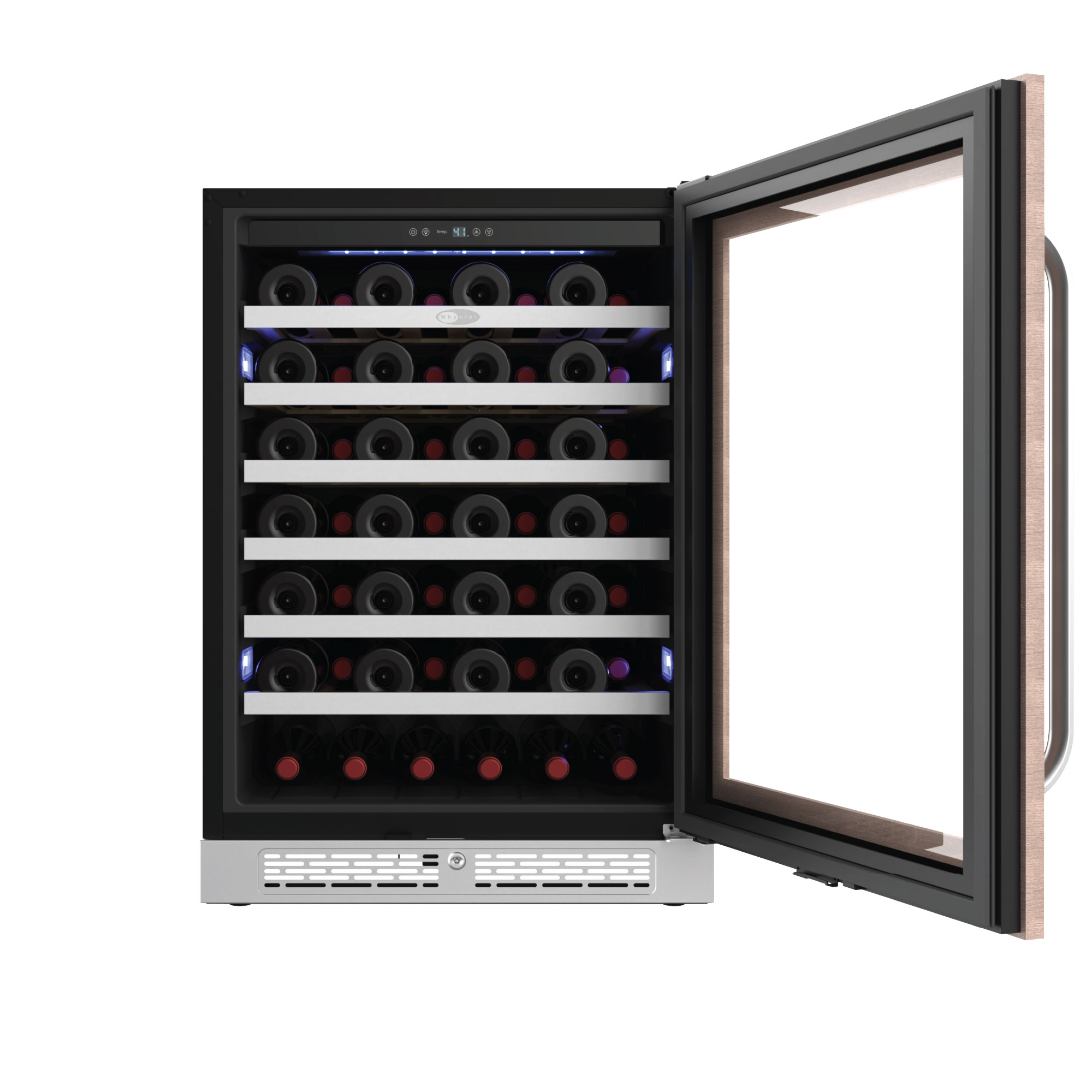

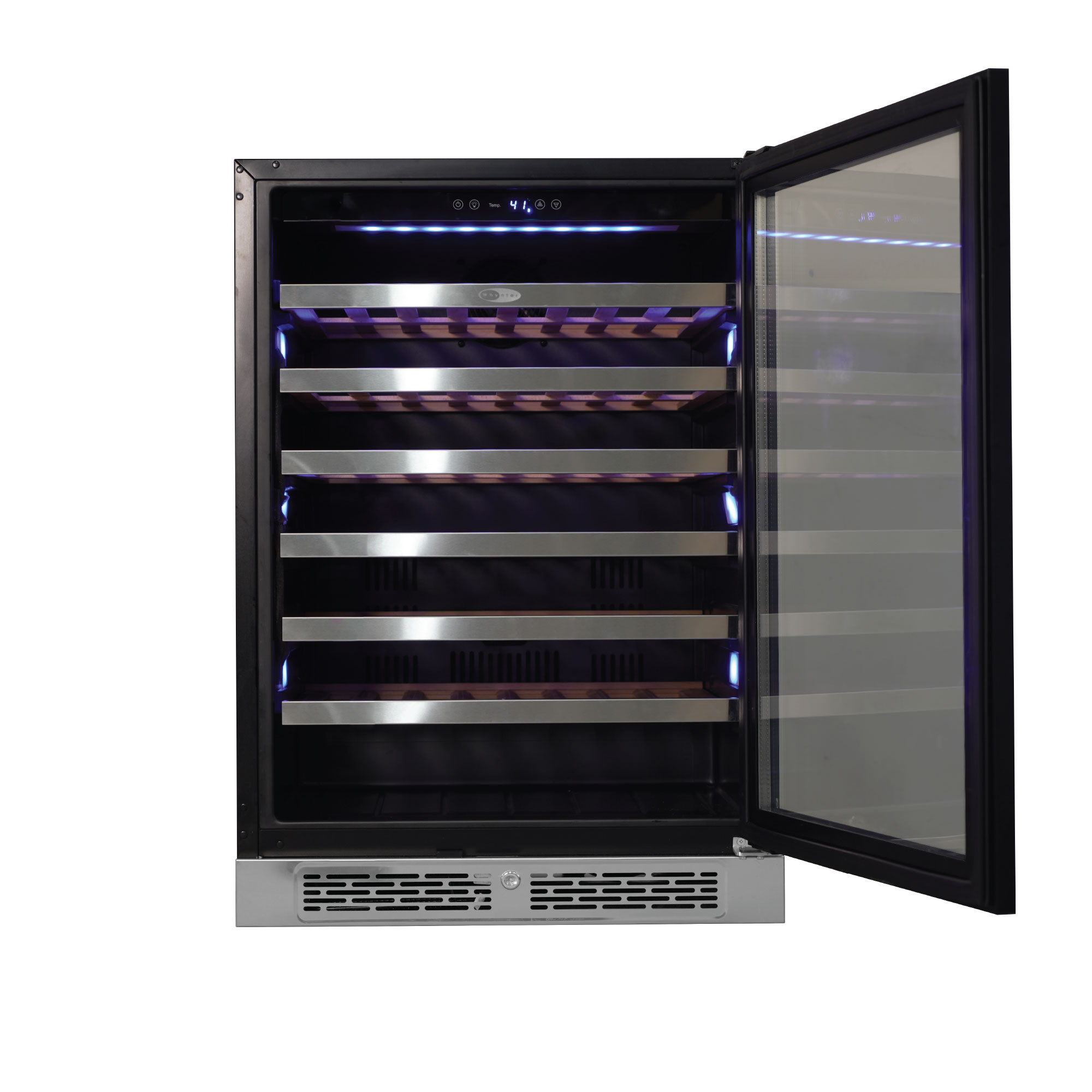

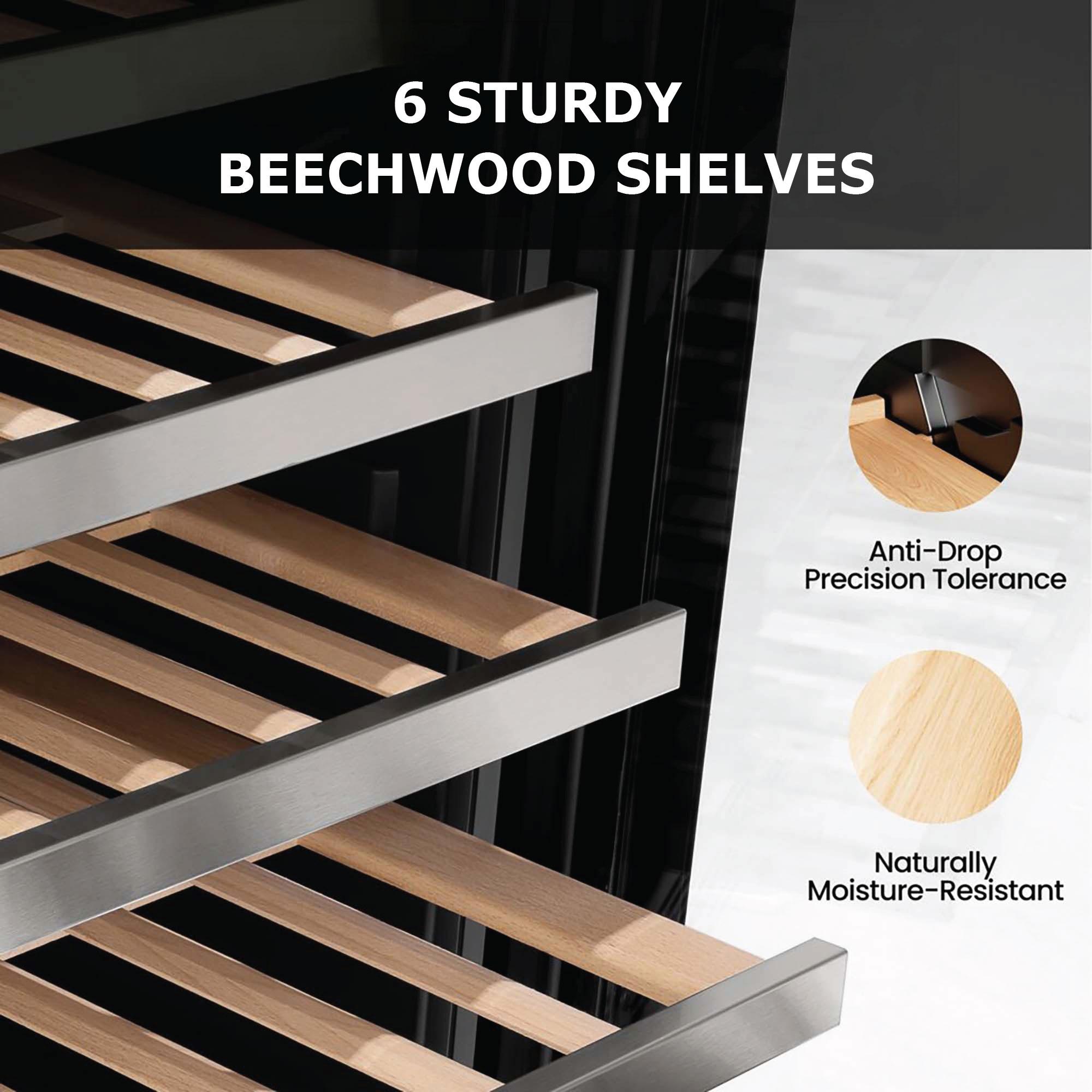

| Shelf Type | Wood shelves (8 bottles each) plus 6 bottles on the cabinet floor |

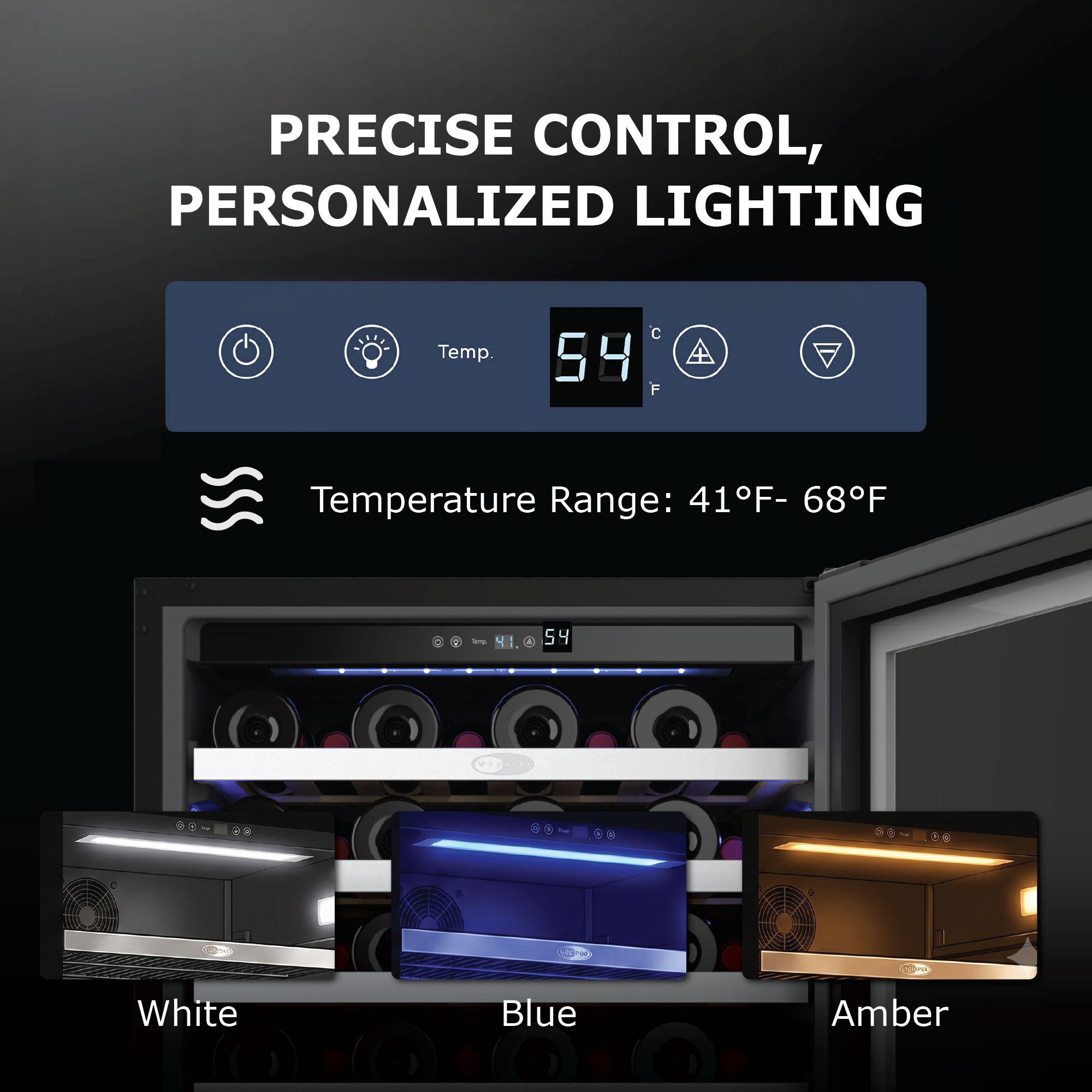

| Interior Light | 3-color interior LED mood lighting (white, blue, amber); Interior LED door frame lighting |
| Control Type | Smart digital control |
| Alarms | Door open (E0), high temperature (HI), low temperature (LO), temperature difference (Et) |
| Front Venting | Yes |
| Cutout Dimensions | 24.05" W x 23.65" D x 34.05" H (minimum cutout) |
| Clearance Requirements | Built-in: min 1/4" (6.35 mm) each side and top; front vent grille must stay unobstructed. Freestanding: 5" (127 mm) back and sides |
| Leveling Legs | 4 adjustable leveling legs |
| Voltage / Frequency | 115 V / 60 Hz |
| Rated Current | 1.2 A |
| ETL / UL Listing | ETL Listed |
| Energy Star Rated | Yes |
| Net Weight | 99 lbs |

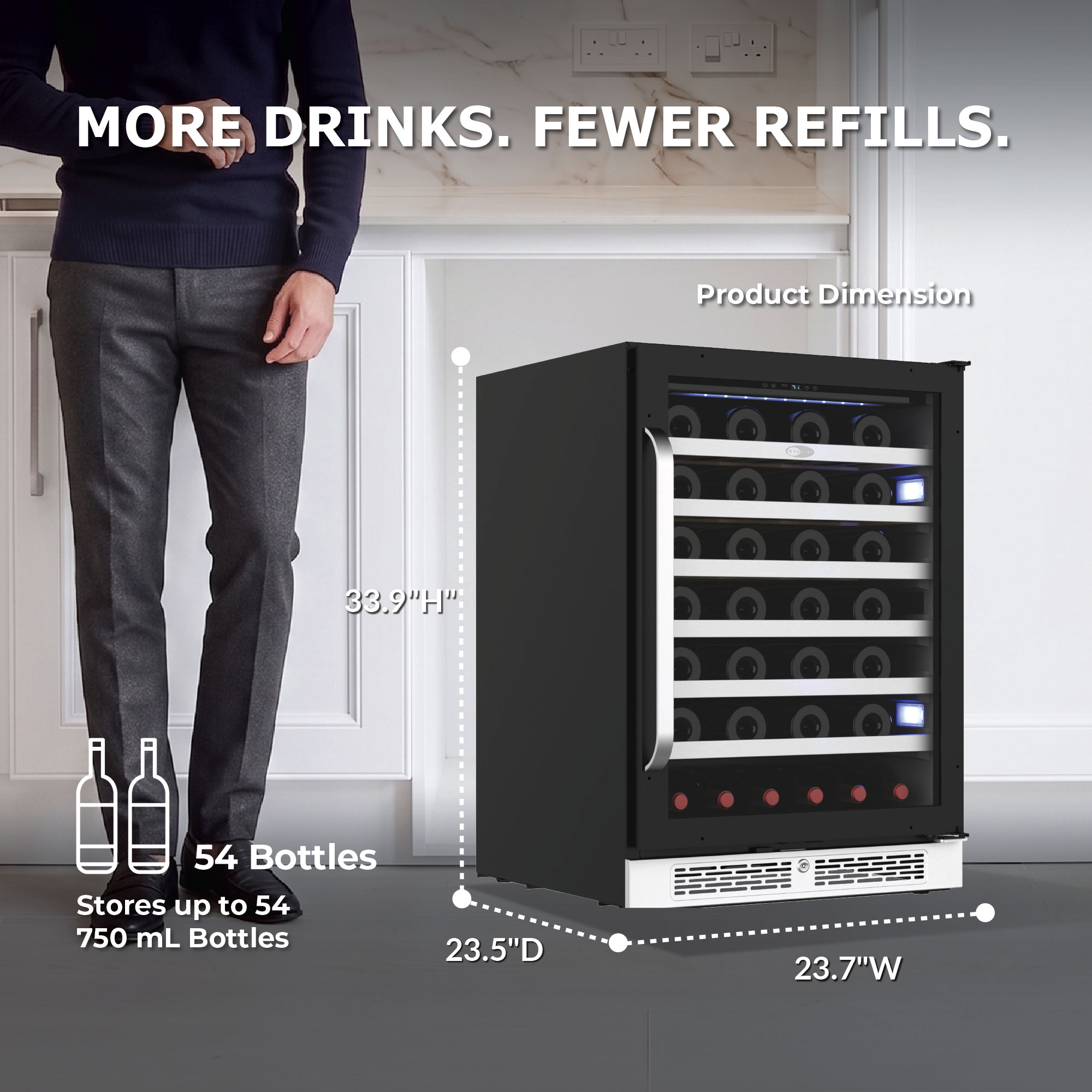

| Unit Dimensions | 23.7" W x 23.5" D x 33.9" H |
| Gross Weight (Shipping) | 113.5 lbs |
| Packaging Dimensions | 27.4" W x 27.4" D x 38.8" H |
| UPC | 850082633142 |
Features
Features

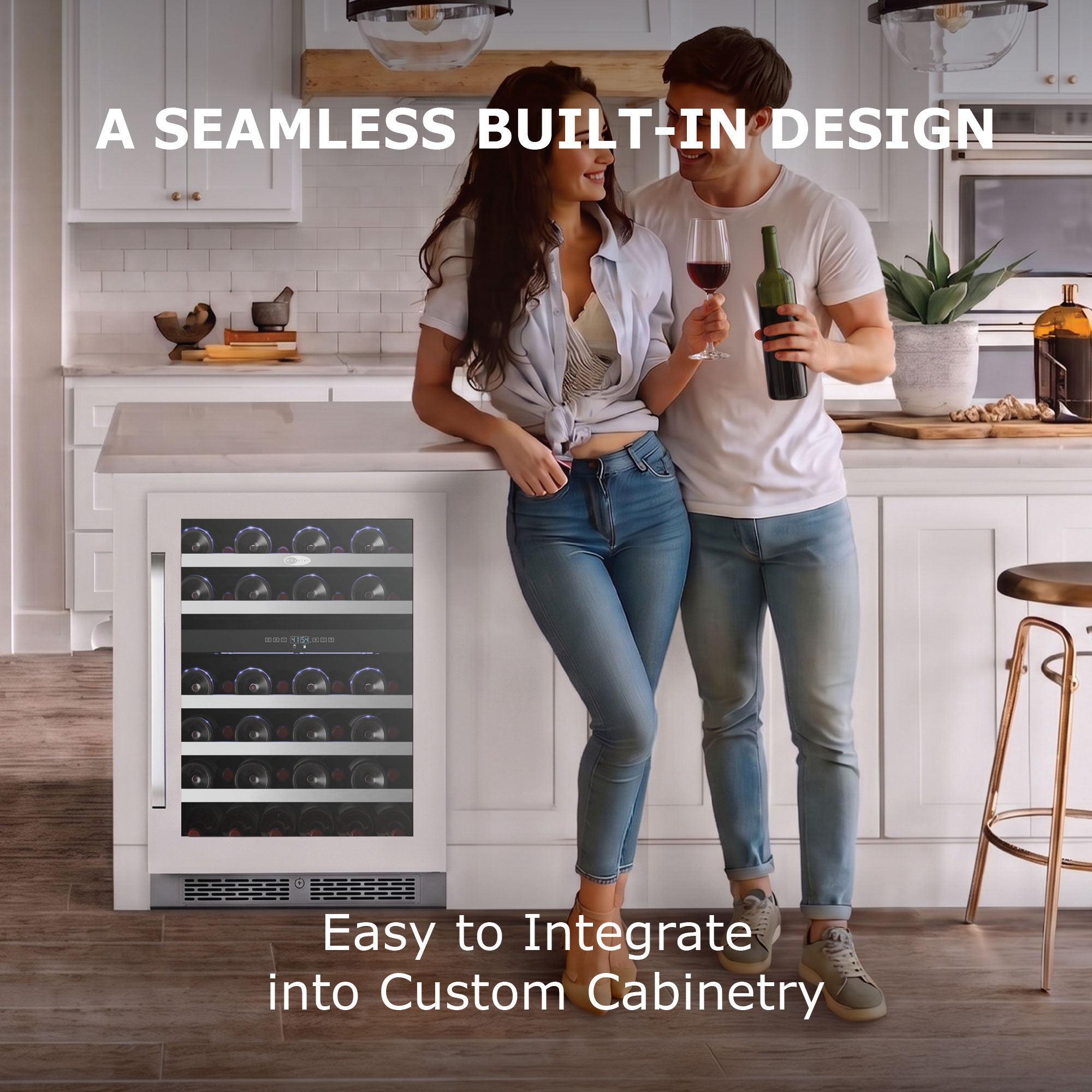

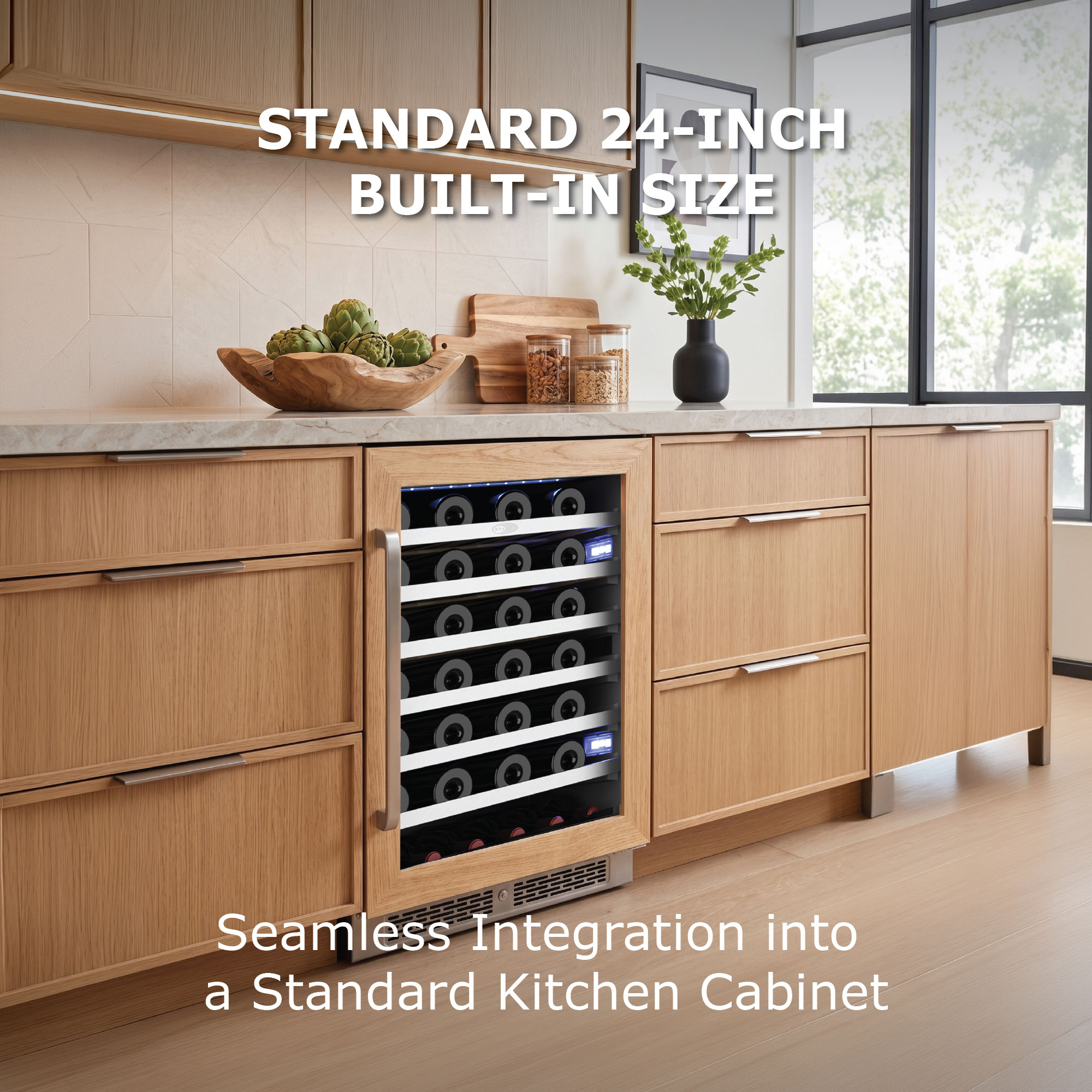

● Architectural Integration

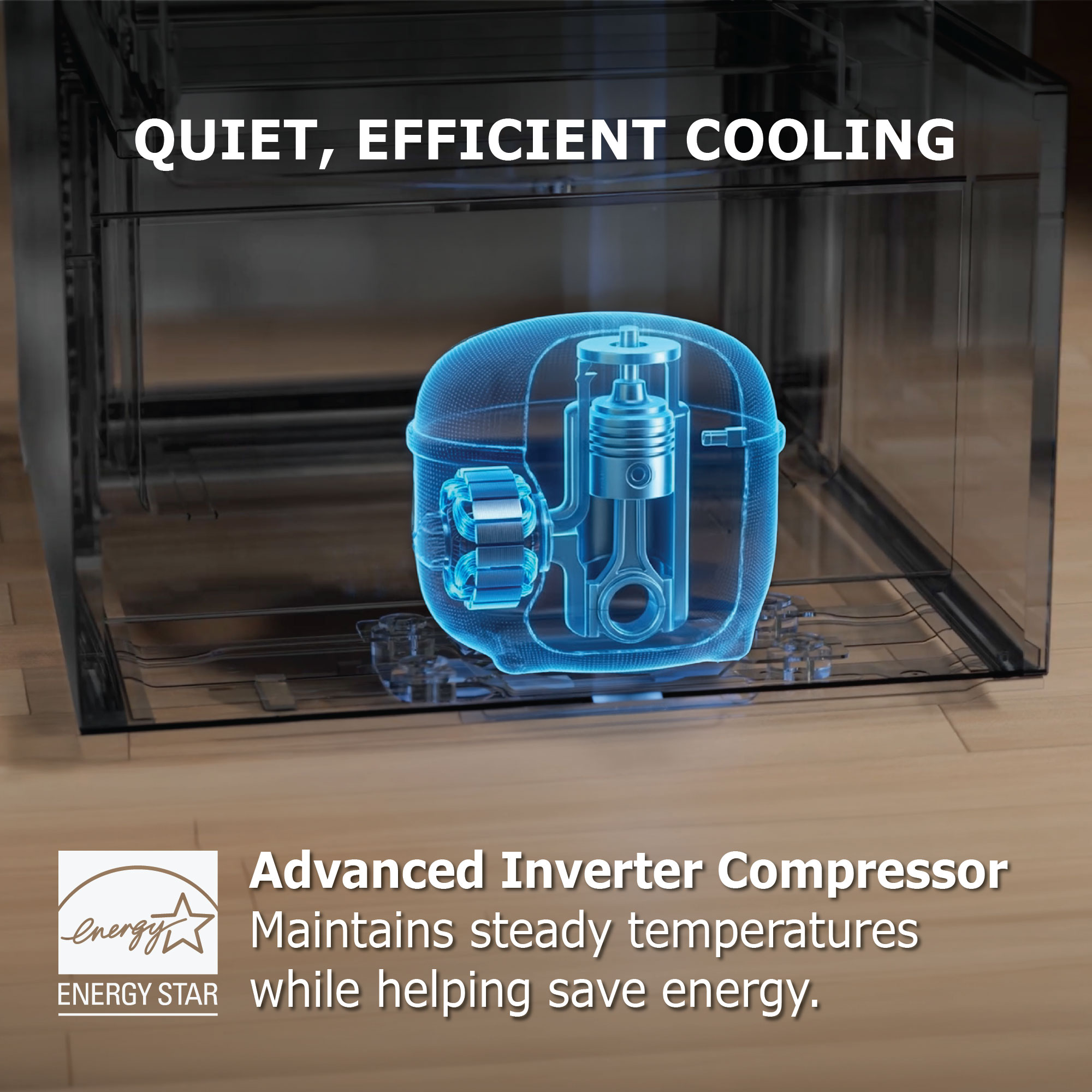

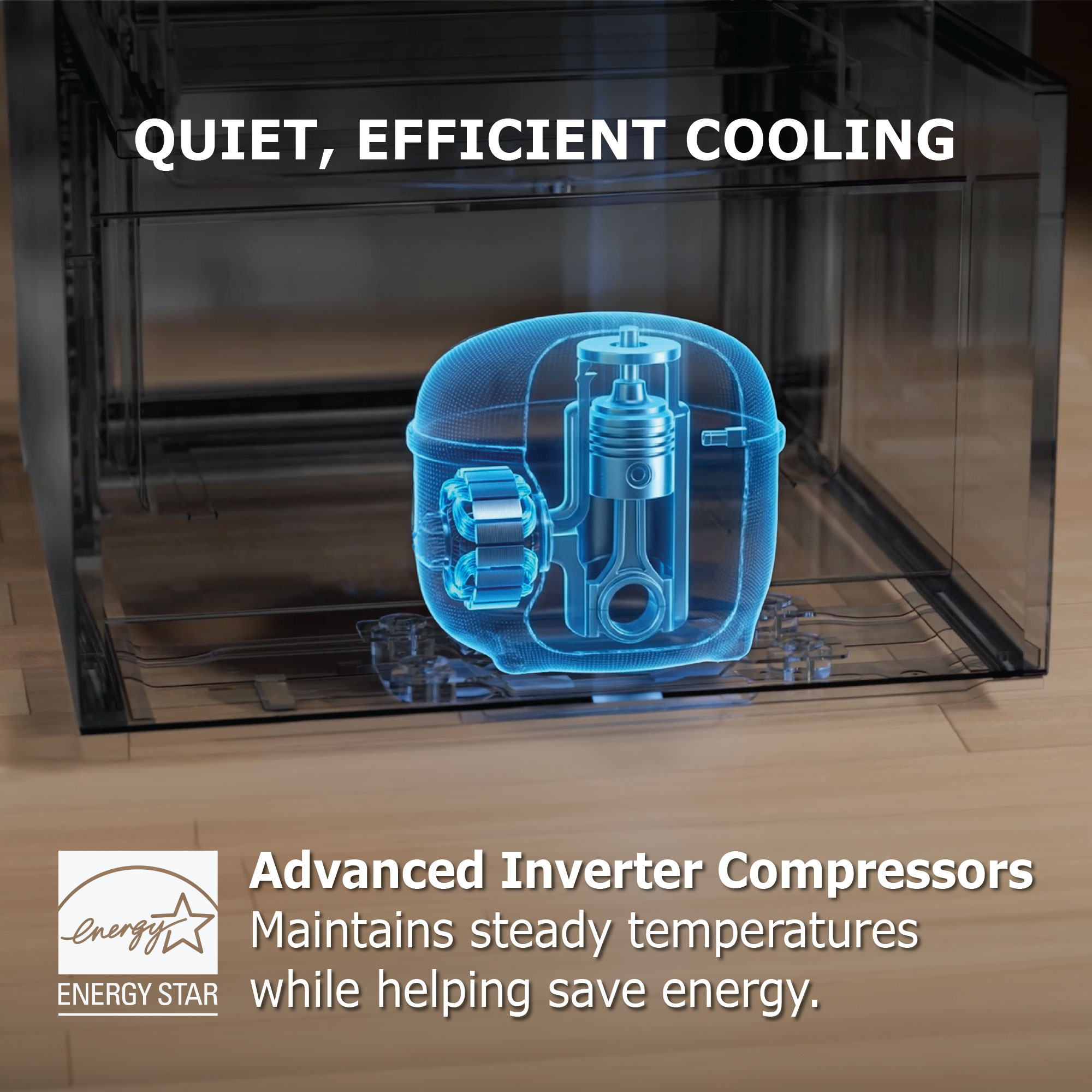

● Variable inverter compressor for precise, efficient, and ultra-quiet Operation
● Energy Star Rated
● ETL listed
● Smart Digital Control with temperature memory function restores settings after power interruption
● Fahrenheit and Celsius degree temperature indicators
● Internal fan-forced circulation for even temperature distribution

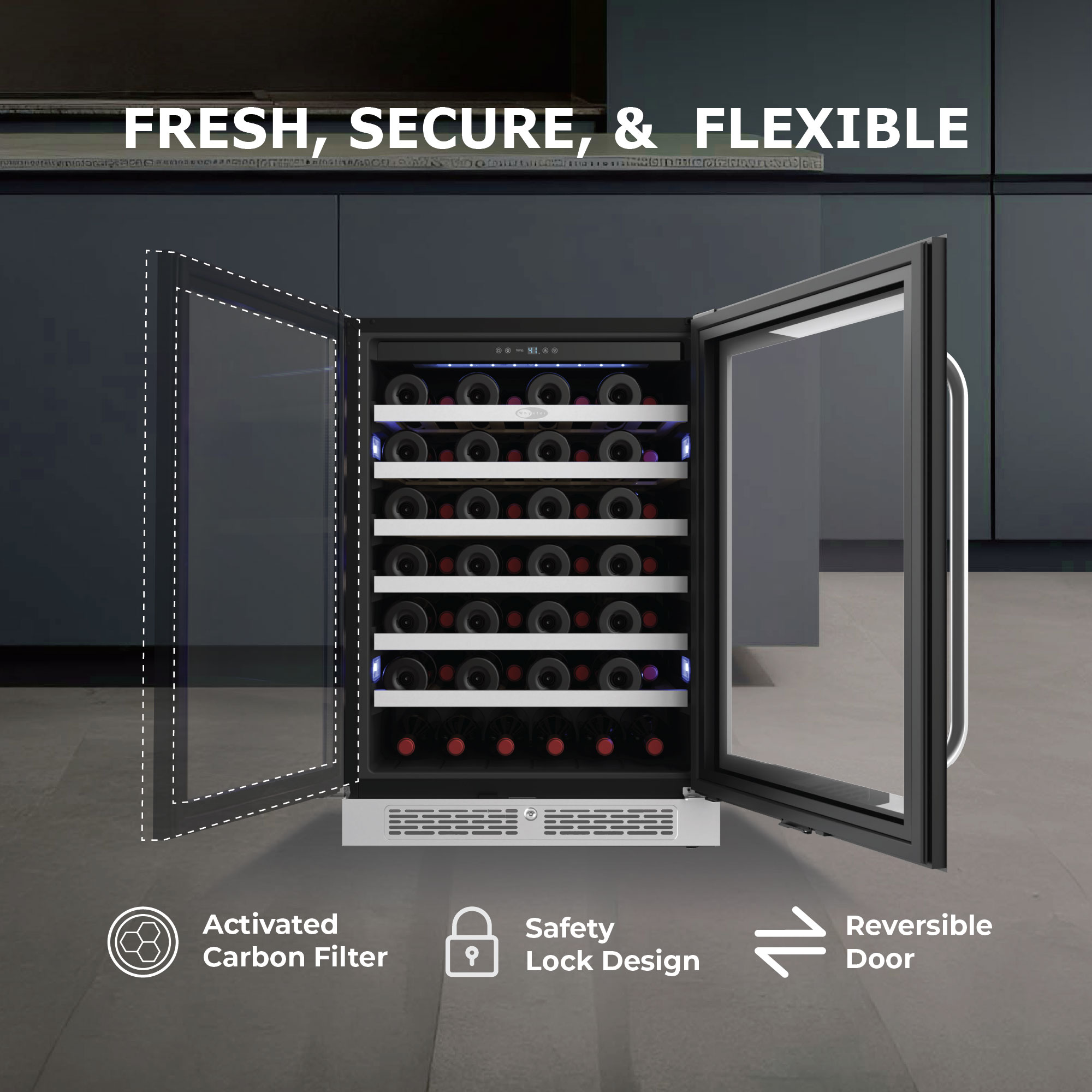

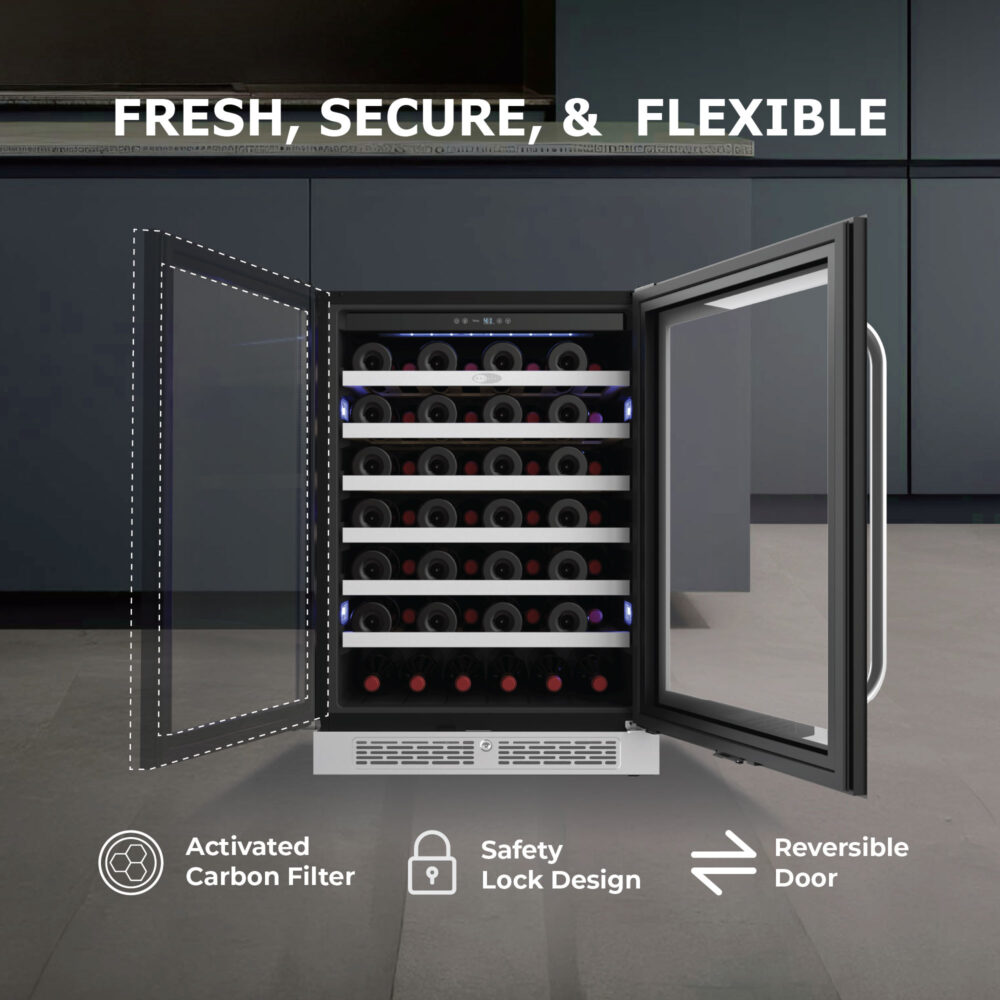

● Activated carbon filter preserves beverage taste by filtering ambient odors
● Cylinder lock and two keys
● 3-color interior LED mood lighting (white, blue, amber)
● Interior LED door frame lighting
● Double tempered glass panel
● 6 wood shelves
● Temperature Range: 41°F- 68°F (5°C- 20°C)
● 54-bottle wine storage capacity
● UPC: 850082633142
● Net Weight: 99 lbs
● Gross Weight: 113.5 lbs
● Unit Dimensions: 23.7″ W x 23.5″ D x 33.9″ H
● Packaging Dimensions: 27.4″ W x 27.4″ D x 38.8″ H
● Custom Panel Requirements:
● Note: Wood panel sold separately. Professional installation required for panel alignment, hinge adjustment, and ventilation
● Custom panel requirements: 23.6″W × 29.9″H (600 × 760 mm), 3/4″ (19 mm) recommended thickness, max 10 lbs

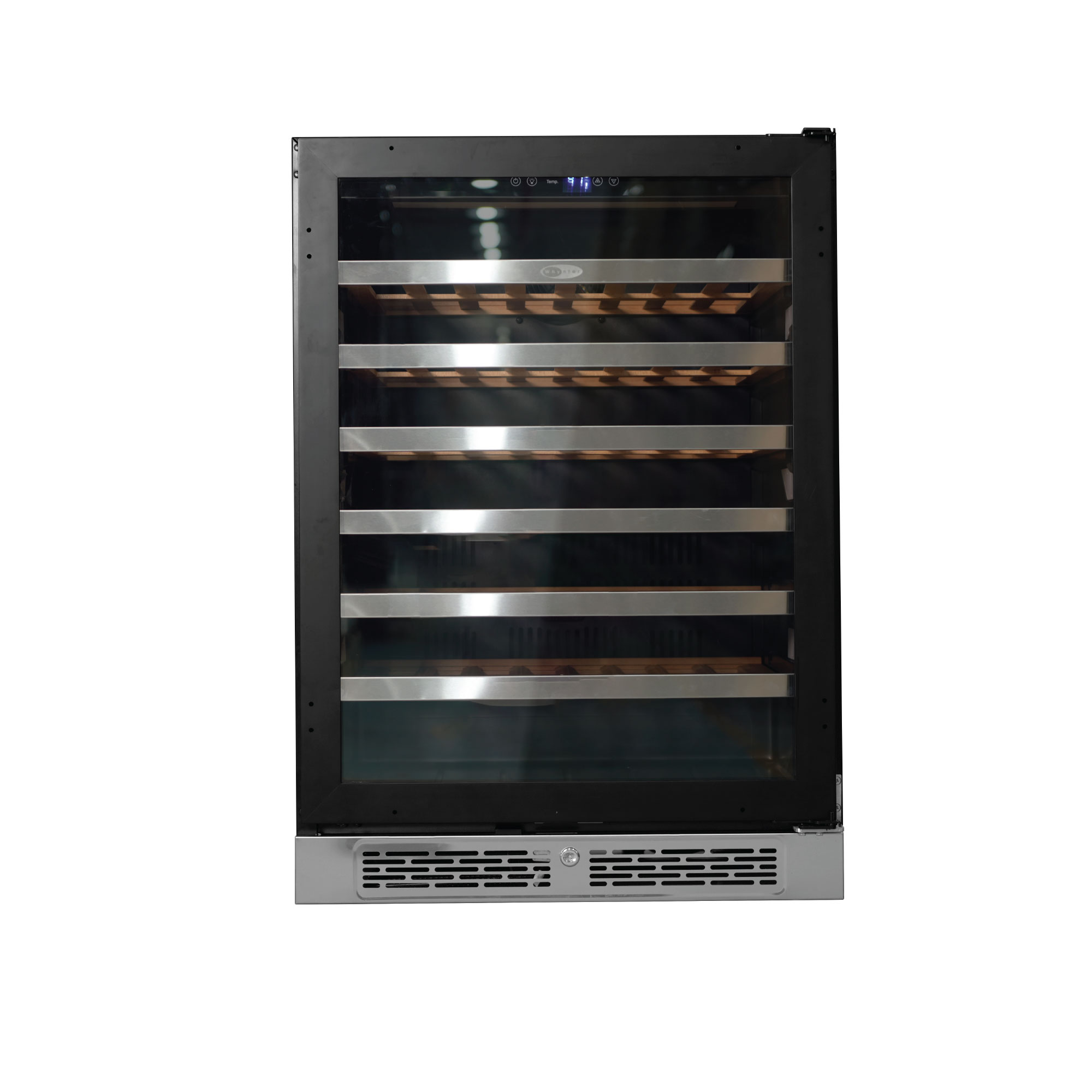

● Wood panels are sold separately
● Professional installation required for panel alignment, hinge adjustment, and ventilation
